- M.2 2280
- 2TB
- PCI-Express 4.0 x4
- Boost productivity or design creatives effortlessly by upgrading to PCIe® Gen 4.0 SSDs with up to 4,150 MB/s** read speeds (1TB and 2TB* models)
- Make light work of heavy files with Western Digital’s nCache™ 4.0 technology enabling blistering fast copying of large files or media assets
- With up to 2TB* of storage on a slim M.2 2280 form-factor, applications, data, and media such as photos, 4K videos, and music can be stored on the same drive
- Keep creating uninterrupted when you’re in the zone or on the go with low-power storage to maximize your laptop’s battery life
- NVMe™ delivers application responsiveness while multitasking between projects with large and complex workflows
- Rated up to 900TBW*** (2TB* model only) with Western Digital’s 5-year limited warranty for peace of mind reliability

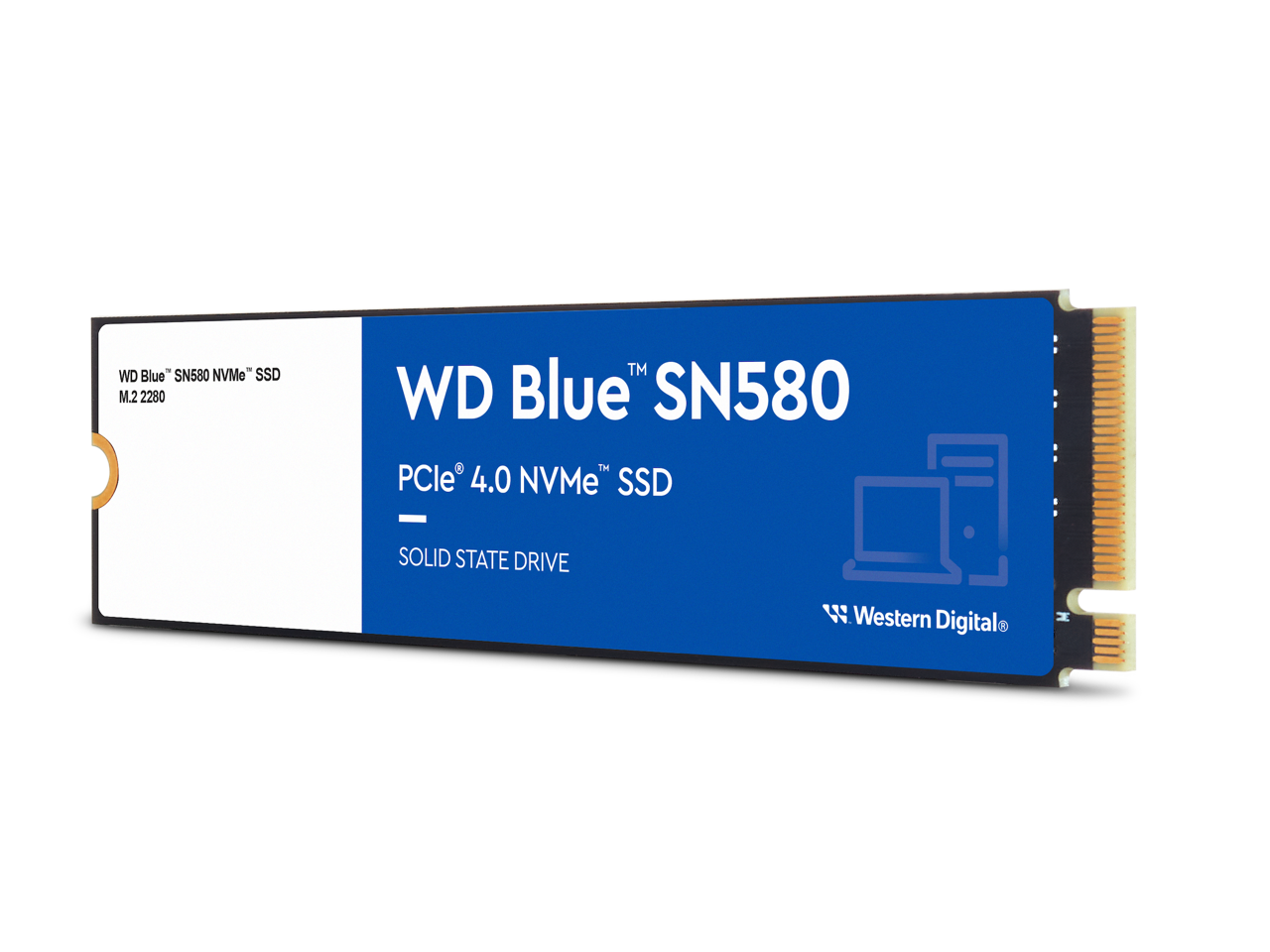

Western Digital WD_Blue SN580 M.2 2280 2TB PCI-Express 4.0 x4 TLC Internal Solid State Drive (SSD) WDS200T3B0E
The Western Digital WD_Blue SN580 2TB M.2 2280 SSD delivers high-speed performance with PCIe 4.0 x4 interface, offering read speeds up to 4,150 MB/s for faster boot times, application loading, and file transfers. Built with reliable TLC NAND, it ensures durability and efficiency for everyday computing and demanding workloads. Its compact M.2 2280 form factor makes it ideal for desktops and laptops with limited space. With 2TB of storage, it provides ample capacity for large files, games, and multimedia content. Backed by Western Digital’s trusted reliability and a 5-year limited warranty, the SN580 is a powerful, cost-effective upgrade for enhanced system performance.
Power Consumption (Active): | 6.5W |
---|---|
Memory Components: | TLC |
Width: | 22.00mm |
Max Shock Resistance: | 1 500G @0.5 ms half sine |
Form Factor: | M.2 2280 |
$Quote
Premium Client Discounts Available
Power Consumption (Active) | 6.5W |
---|---|
Memory Components | TLC |
Width | 22.00mm |
Max Shock Resistance | 1 500G @0.5 ms half sine |
Form Factor | M.2 2280 |
4KB Random Write | Up to 750 000 IOPS |
Storage Temperature | -40C ~ +85C |
Max Sequential Read | Up to 4150 MB/s |
Capacity | 2TB |
Brand | Western Digital |
Used For | Consumer |
Depth | 80.00mm |
4KB Random Read | Up to 600 000 IOPS |
Model | WDS200T3B0E |
Series | WD Blue SN580 |
Interface | PCIe 4.0 x4 |
Power Consumption (Idle) | PS5 (Sleep) 3.3mW |
Max Vibration Resistance | Non-operating Vibration: 4.9 gRMS 7-800 Hz 3 axes, Operating Vibration: 5 gRMS 10-2000 Hz 3 axes |
Application | Desktop |
Device Type | Internal Solid State Drive (SSD) |
Products Status | New |
MTTF | 1.5M Hours |
Max Sequential Write | Up to 4150 MB/s |
Height | 2.38mm |
Weight | 5.50g |
Terabytes Written (TBW) | 900TB |
Operating Temperature | 0C ~ +85C |
