Product SKUs

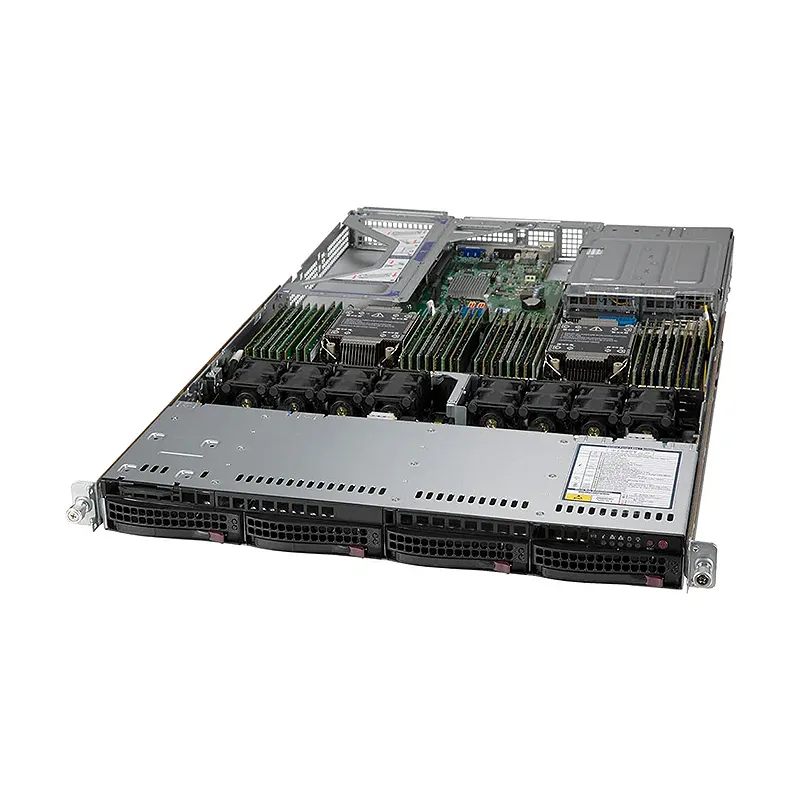

- SuperServerSYS-610U-TNR
Motherboard
- Super X12DPU-6
Processor
- CPU
Dual Socket P+ (LGA-4189)
3rd Gen Intel Xeon Scalable processors - Core Count
Up to 40C/80T; Up to 60MB Cache per CPU
GPU
- Max GPU Count
Up to 2 double-width or 2 single-width GPUs
- Supported GPU
NVIDIA PCIe: T4, RTX A4000, A30, A16, A2, A100
System Memory
- Memory
Slot Count: 32 DIMM slots
Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Supports Intel Optane persistent memory 200 series - Memory Voltage
1.2V
On-Board Devices
- SATA
SATA (6Gbps) ; RAID 0/1/5/10 support
- NVMe
NVMe; RAID 0/1/5/10 support
- Chipset
Intel C621A
- Network Connectivity
2 RJ45 10GBASE-T with Intel X710-AT2 (optional)
2 RJ45 10GBASE-T with Intel X710-TM4 (optional)
2 SFP+ 10GbE with Intel X710-TM4 (optional)
No NIC option supported
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
- USB
2 USB 3.0 ports(rear)
- Video
1 VGA port
- DOM
2 Super DOM (Disk on Module) ports
System BIOS
- BIOS Type
AMI 32MB SPI Flash EEPROM
Management
- Power configurations
Power-on mode for AC power recovery
ACPI Power Management
Chassis
- Form Factor
1U Rackmount
- Model
CSE-819U3TS-R1K22P-T
Dimensions and Weight
- Height
1.7″ (43 mm)
- Width
17.2″ (437 mm)
- Depth
29.7″ (754 mm)
- Package
7.99″ (H) x 23.81″ (W) x 37.4″ (D)
- Weight
Gross Weight: 44.5 lbs (20.2 kg)
Net Weight: 29.5 lbs (13.4 kg) - Available Color
Black Front & Silver Body
Front Panel
- LED
HDD activity
LAN1 activity
LAN2 acticity
Power status
System information (overheat/UID) - Buttons
Power On/Off
UID button
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 1 PCIe 4.0 x16 (in x16) LP slot 1 PCIe 4.0 x16 (in x16) LP slot 2 PCIe 4.0 x16 (in x16) FH/10.5″L slots
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 4 bays 4 front hot-swap 2.5″ NVMe*/SAS*/SATA drive bays
(*NVMe/SAS support may require additional storage controller and/or cables) - M.2
System Cooling
- Fans
8x 4cm heavy duty fans with optimal fan speed control
- Air Shroud
2 Air Shrouds
Power Supply
- 1x 1200W
1x 1200W Redundant Titanium Level (96%) Hot-plug power supply
Dimension (WxHxL)
73.5 x 40 x 203 mm
Input
800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vdc (For CCC Only)
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc) (For CCC Only)
12V SB
Max: 2.1A / Min: 0A
Output Type
Backplanes (gold finger)
