| Products Status | New |
|---|---|
| Form Factor | 2U Rackmount |
| Application | AI |
| Interface | NVMe (Optional), SAS (Optional), SATA (Optional) |
| Memory | Slot Count: 32 DIMM slotsMax Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMMMax Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMMView Memory Options |
| Drive Form Factors | 2.5" |
| Chipset | Intel C741 |
| Generation | X13 |
| CPU | Dual Socket E (LGA-4677)5th Gen Intel XeonSupports Intel Xeon CPU Max Series with high bandwidth memory (HBM) |
| Total PCI-E Slots | 8 |
| CPU Type | 5th Gen Intel Xeon/4th Gen Intel Xeon Scalable processors |
| Drives | 8 |
| Max GPU | 2 |
| Model | Server SYS-221H-TNR |
| Fans | 4x 8cm heavy duty fans with optimal fan speed control |
| BIOS Type | AMI 64MB SPI Flash |
| Depth | 29.9" (760 mm) |
| Height | 3.5" (88.9 mm) |
| Width | 17.2" (437 mm) |
| Package | 10.4" (H) x 23.8" (W) x 43.6" (D) |
| PCI-Express (PCIe) Configuration | Option A*Option B*(*Requires additional parts, please refer to the system callout images above.), please see the optional parts list for details. For more details on PCIe slot configuration options |
| Weight | Gross Weight: 66 lbs (30 kg)Net Weight: 40 lbs (18.2 kg) |
| Drive Bays Configuration | Default: Total 8 baysOption A: Total 16 bays(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) |
| Video | 1 VGA port |
| Network Connectivity | Via AIOMView AIOM OptionsView AOC Options |
| Note | Supports up to 350W TDP CPUs (Air Cooled)Supports up to 350W TDP CPUs (Liquid Cooled) |
| M.2 | 2 M.2 NVMe/SATA slots (M-key 2280/22110) |
| LED | HDD activityLAN1 activityLAN2 activityPowerPower FailSystem information |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 2.0 ports(rear)2 USB 3.0 ports(Header) |
| Core Count | Up to 64C/128T; Up to 320MB Cache per CPU |
| Max GPU Count | Up to 4 double-width or 8 single-width GPUs |
| Memory Voltage | 1.1V |
| SATA | SATA (6Gbps) ; RAID 0/1/5/10 support |
| Supported GPU | H100, L40, L40S, NVIDIA PCIe: H100 NVL, A100View GPU Options, A16, A40, L4, RTX A4000, RTX A6000 |
| NVMe | NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)View NVMe Options |
| Air Shroud | 2 Air Shrouds |
| CXL Support | Up to 4 CXL 1.1 x16/x8 devices |

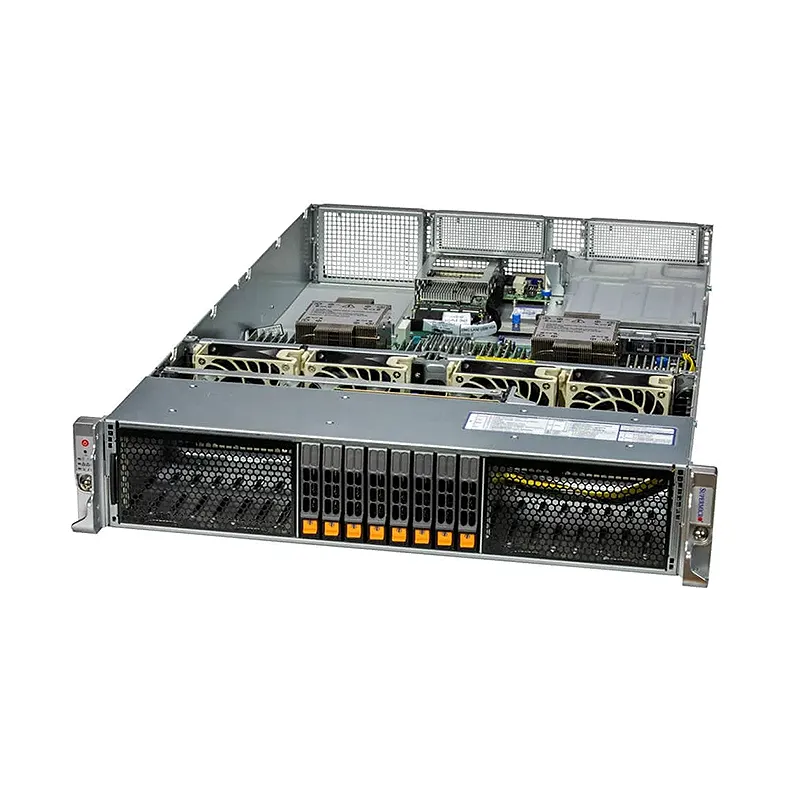

Hyper SuperServer SYS-221H-TNR
The Hyper SuperServer SYS-221H-TNR is a high-performance 2U dual-socket server designed for demanding enterprise workloads, including AI, cloud computing, and data analytics. It supports 3rd Gen Intel Xeon Scalable processors with up to 270W TDP, offering exceptional processing power and scalability. Key features include 32 DIMM slots for up to 8TB of DDR4 memory, 24 hot-swappable drive bays (supporting NVMe, SATA, and SAS), and multiple PCIe 4.0 expansion slots for high-speed connectivity. Its tool-less design, advanced cooling, and redundant power supplies ensure reliability and ease of maintenance. The SYS-221H-TNR stands out for its performance density, flexible storage options, and enterprise-grade reliability, making it ideal for data-intensive applications.
| Products Status： | New |
|---|---|
| Form Factor： | 2U Rackmount |
| Application： | AI |
| Interface： | NVMe (Optional), SAS (Optional), SATA (Optional) |
| Memory： | Slot Count: 32 DIMM slotsMax Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMMMax Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMMView Memory Options |
