Product SKUs
- SYS-6029P-WTR

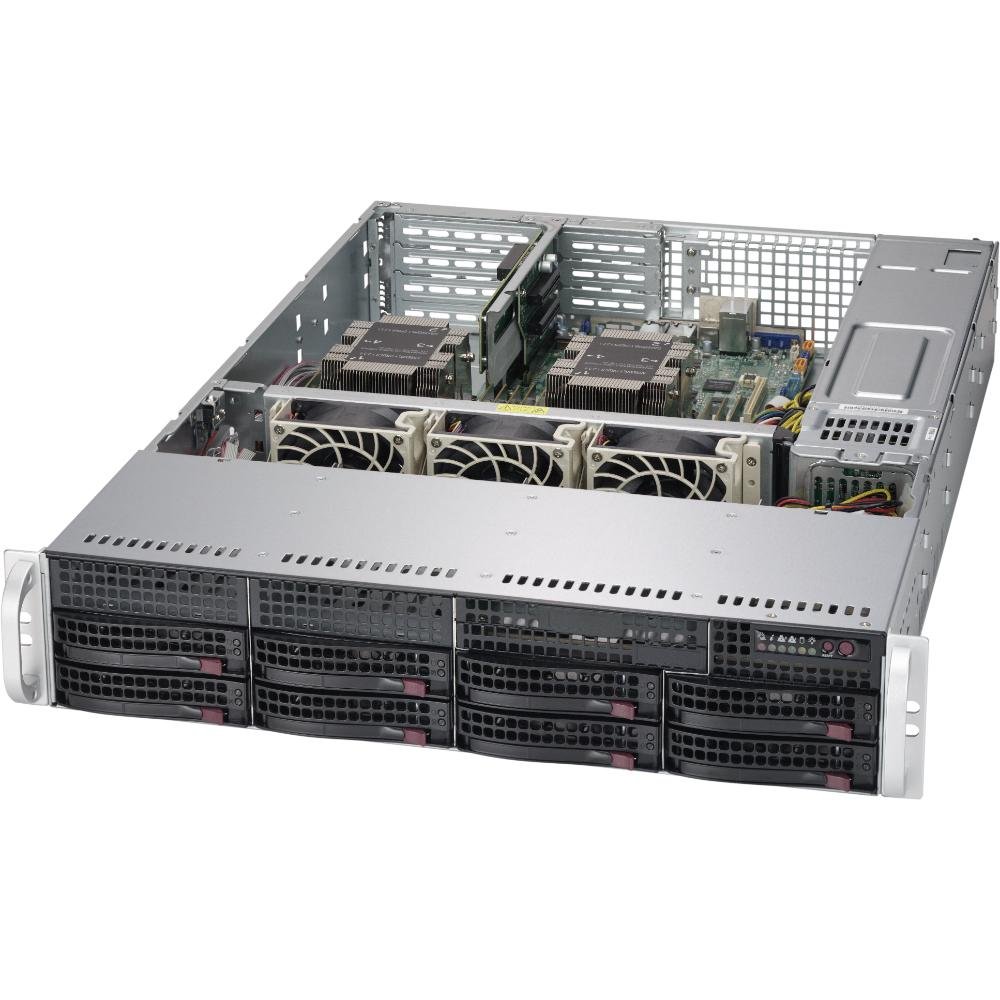

SuperServer 6029P-WTR ( Black )
Motherboard
- Super X11DDW-L
Processor
- CPU
Dual Socket P (LGA 3647)
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors , Dual UPI up to 10.4GT/s
Support CPU TDP 70-205W - Cores
Up to 28 Cores
System Memory
- Memory Capacity
12 DIMM slots
Up to 3TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel Optane DCPMM - Memory Type
2933 /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
On-Board Devices
- Chipset
Intel C621 chipset
- SATA
SATA3 (6Gbps); RAID 0, 1, 5, 10
- Network Controllers
Dual 1GbE LAN ports from Intel C621
- IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support - Video
ASPEED AST2500 BMC

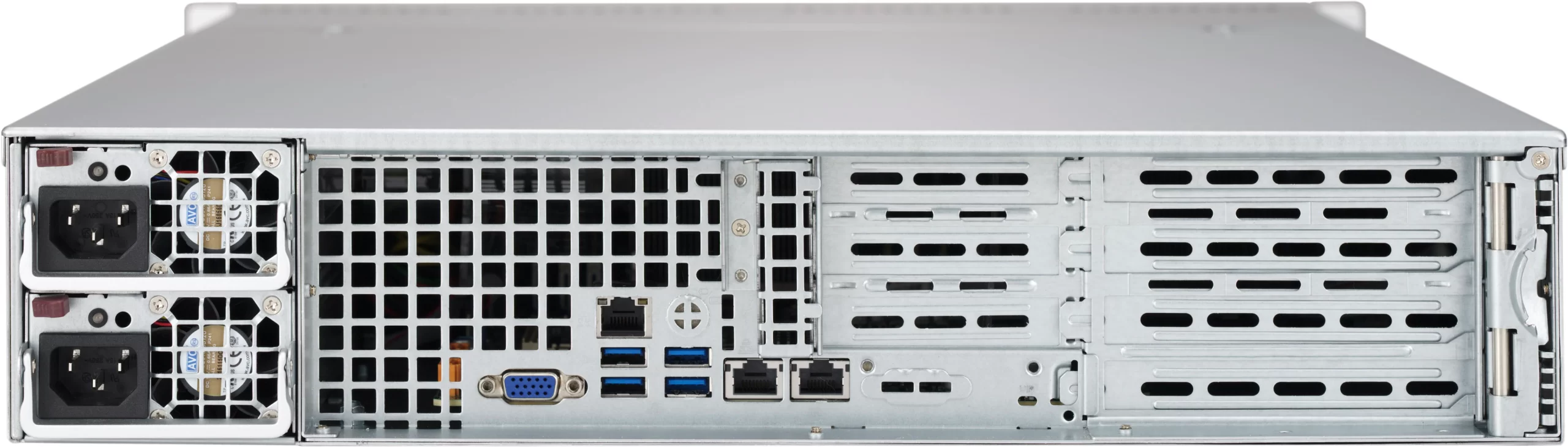

Input / Output
- SATA
12 SATA3 (6 Gbps) ports
- LAN
2 RJ45 Gigabit Ethernet ports
1 RJ45 Dedicated IPMI LAN port - USB
4 USB 3.0 ports (rear)
- Video
1 VGA port
- DOM
2 Super DOM (Disk on Module) ports
System BIOS
- BIOS Type
AMI 32Mb SPI Flash ROM
Management
- Power Configurations
ACPI / APM Power Management
Chassis
- Form Factor
2U Rackmount
- Model
CSE-825TQC-R1K03WB
Dimensions and Weight
- Width
17.2″ (437mm)
- Height
3.5″ (89mm)
- Depth
25.5″ (648mm)
- Gross Weight
62 lbs (28.1 kg)
- Available Colors
Black

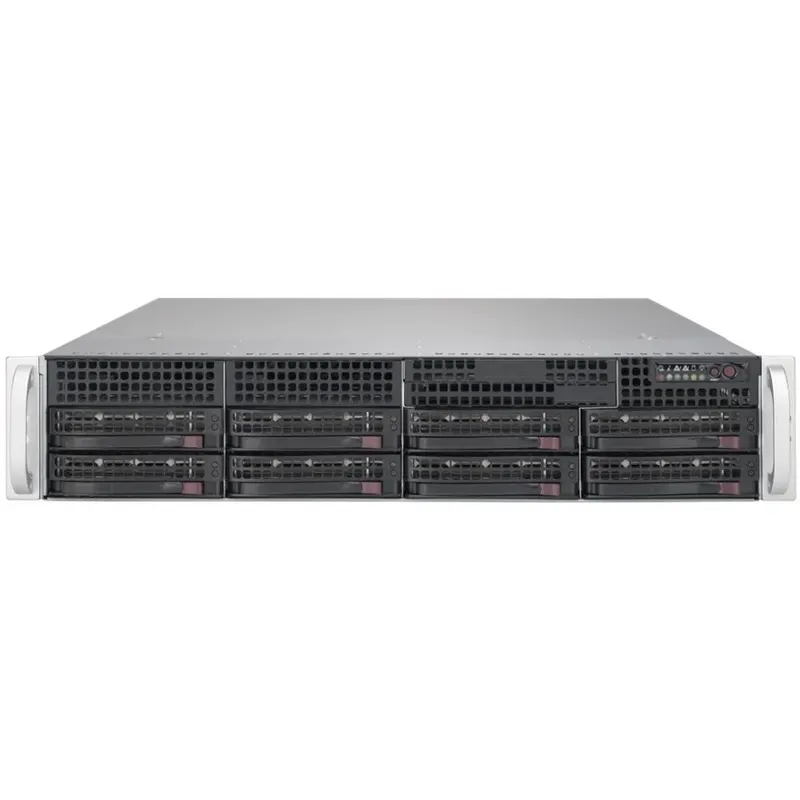

Front Panel
- Buttons
Power On/Off button
UID button - LEDs
Power status LED
HDD activity LED
Network activity LEDs
Universal Information (UID) LED
Expansion Slots
- PCI-Express
4 PCI-E 3.0 x8 (FHHL) slots
2 PCI-E 3.0 x8 (LP) slots
1 PCI-E 3.0 x16 for Add-on-Module (AOM)
1 PCI-E 3.0 x4 NVMe M.2 slot
Drive Bays
- Hot-swap
8 Hot-swap 3.5″ SAS/SATA drive bays with SGPIO
- Internal
2 Fixed 3.5″ drive bays
Peripheral Drives
- DVD-ROM
1 Slim DVD-ROM drive (optional)
Backplane
- SAS/SATA HDD Backplane
System Cooling
- Fans
3 Heavy duty 8cm fans with PWM fan speed control
Power Supply (76mm Width)
- 1000W Redundant Power Supplies with PMBus
- Total Output Power
800W/1000W
- Dimension
(W x H x L)76 x 40 x 336 mm - Input
100-127Vac / 12-9A / 50-60Hz
200-240Vac / 7.2-6A / 50-60Hz
200-240Vdc / 7.2-6A (for CCC only) - +12V
Max: 66.7A / Min. 0A (100-127Vac)
Max: 83A / Min. 0A (200-240Vac)
Max: 83A / Min. 0A (200-240Vdc) - 5Vsb
Max: 4A / Min: 0A
- Output Type
19 Pairs Gold Finger Connector
