Product SKUs
- SYS-5029P-WTR
SuperServer 5029P-WTR ( Black )
Motherboard
- Super X11SPW-TF
Processor
- CPU
Single Socket P (LGA 3647)
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Support CPU TDP 70-205W * - Cores
Up to 28 Cores
System Memory
- Memory Capacity
6 DIMM slots
Up to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM - Memory Type
2933 /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
On-Board Devices
- Chipset
Intel C622 chipset
- SATA
SATA3 (6Gbps); RAID 0, 1, 5, 10
- Network Controllers
Dual 10GBase-T LAN with Intel X722 + X557
- IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support - Video
ASPEED AST2500 BMC
Input / Output
- SATA
10 SATA3 (6Gbps) ports
- LAN
2 RJ45 10GBase-T LAN ports
1 RJ45 dedicated IPMI LAN port - USB
5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
7 USB 2.0 ports (2 rear + 5 headers) - Video
1 VGA port
- Serial Port / Header
2 COM ports (1 rear, 1 front)
- SuperDOM
2 SuperDOM (Disk on Module) ports with built-in power
System BIOS
- BIOS Type
AMI 32Mb SPI Flash ROM
Management
- Power Configurations
ACPI / APM Power Management
Chassis
- Form Factor
2U Rackmount
- Model
CSE-825TQC-R609WB
Dimensions and Weight
- Height
3.5″ (89mm)
- Width
17.2″ (437mm)
- Depth
25.5″ (647mm)
- Package
26.5″ (W) x 11″ (H) x 34″ (L)
- Weight
Gross Weight: 59 lbs (26.76 kg)
Net Weight: 34 lbs (15.42 kg) - Available Colors
Black

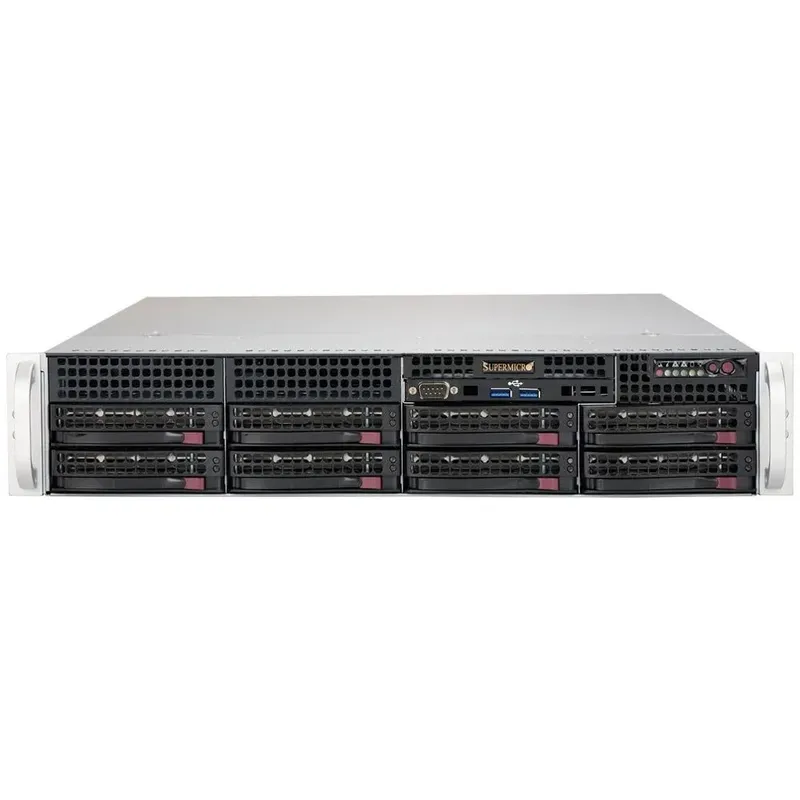

Front Panel
- Buttons
Power On/Off button
System Reset button - LEDs
Power LED
Hard drive activity LED
Network activity LEDs
System Information LED
Information LED (temp., status)
Expansion Slots
- PCI-Express
4 PCI-E 3.0 x8 (FHFL) slots
1 PCI-E 3.0 x8 (LP) slot - M.2
1x M.2 Interface: PCI-E 3.0 x4 and SATA
Form Factor: 2280, 22110
Key: M-Key
Double Height Connector
Drive Bays
- Hot-swap
8 Hot-swap 3.5″ SATA3 drive bays
Peripheral Drives
- DVD-ROM
1 Slim DVD-ROM drive bay
System Cooling
- Fans
3 Hot-swap 8cm PWM cooling fans
Power Supply
- 600W/650W high-efficiency redundant power supplies with PMBus
- AC Input
100-127 Vac (600W)
200-240 Vac (650W) - DC Output
200-240 Vdc (650W)
- +12V
50 Amp (600W)
54.16 Amp (650W)
54.16 Amp (650W) - 12V Standby
4A
