| BIOS Features | ACPI 6.4SMBIOS 3.5UEFI 2.8Plug and Play (PnP)PCI FW 3.3 |
|---|---|
| Graphics | 1 ASPEED AST2600 BMC port(s) |
| TPM | 1 TPM Header |
| Network Controllers | Dual LAN with 1GbE with Intel I210 |
| M.2 | M.2 Interface: 1 PCIe 4.0 x4Form Factor: 2280/22110Key: M-Key |
| Chipset | Intel C262 |
| DIMM Sizes | 16GB, 32GB, 8GB |
| BIOS Type | AMI 32MB AMI UEFI |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| Video Output | 1 VGA D-Sub Connector port(s) |
| Dimension | 9.6" x 9.6" (24.38cm x 24.38cm) |
| PCIe | 1 PCIe 5.0 x8, 1 PCIe 5.0 x8 (in x16 slot), 2 PCIe 4.0 x4 (in x8 slot) |
| USB | 6 USB 2.0 port(s) (4 via header; 2 rear)5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A) |
| Form Factor | Micro-ATX |
| Memory Type | 4400/4000/3600 MT/s Up to 128GB of memory with speeds of up to 4400MT/s (2DPC) |
| Application | Server |
| IPMI | ASPEED AST2600 BMC |
| Memory Voltage | 1.1V |
| CPU | CPU TDP supports Up to 95W TDP, Intel Xeon E-2400/Pentium* ProcessorSingle Socket Socket V0 (LGA-1700) supported |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| SATA | 8 SATA3 (6Gbps) port(s) |
| Memory Capacity | 4 DIMM slotsUp to 128GB Unbuffered ECC UDIMM, DDR5-4400MT/s |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Core | Up to 8 cores |

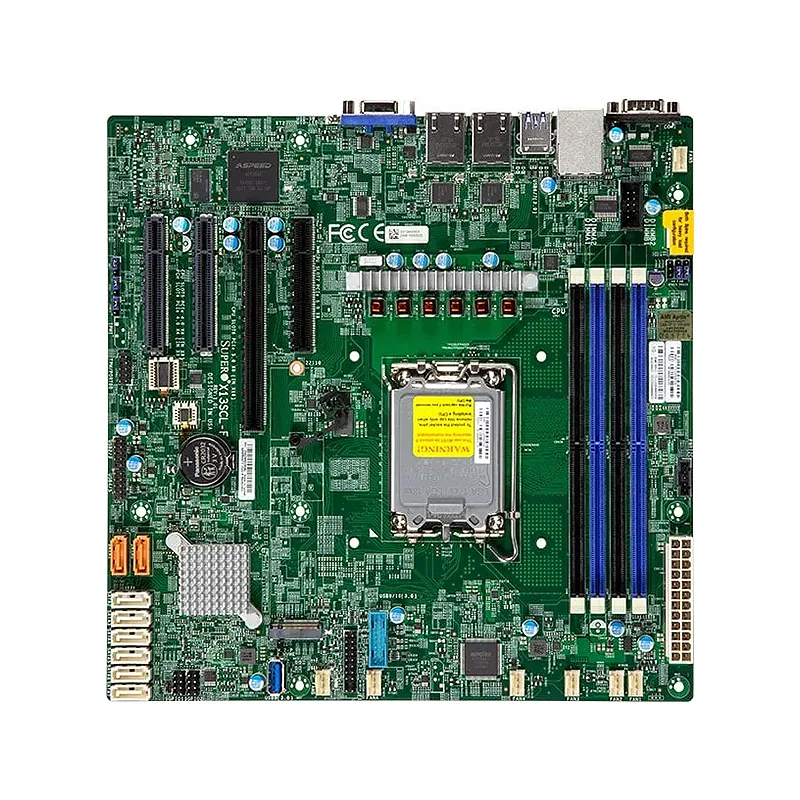

Supermicro MBD-X13SCL-F-B
The Supermicro MBD-X13SCL-F-B is a high-performance ATX server motherboard designed for Intel Xeon E-2400 series and 12th/13th Gen Intel Core processors, supporting the LGA1700 socket. It features the Intel C741 chipset, up to 128GB DDR5 ECC/non-ECC UDIMM memory, and dual Intel Gigabit LAN for reliable networking. With support for PCIe 5.0, M.2 NVMe, and IPMI 2.0 with dedicated management LAN, it offers advanced expandability, fast storage, and remote management capabilities. Ideal for entry-level servers and workstations, it delivers enterprise-grade reliability, scalability, and efficiency in a cost-effective platform.
| BIOS Features： | ACPI 6.4SMBIOS 3.5UEFI 2.8Plug and Play (PnP)PCI FW 3.3 |
|---|---|
| Graphics： | 1 ASPEED AST2600 BMC port(s) |
| TPM： | 1 TPM Header |
| Network Controllers： | Dual LAN with 1GbE with Intel I210 |
| M.2： | M.2 Interface: 1 PCIe 4.0 x4Form Factor: 2280/22110Key: M-Key |
