Product SKUs

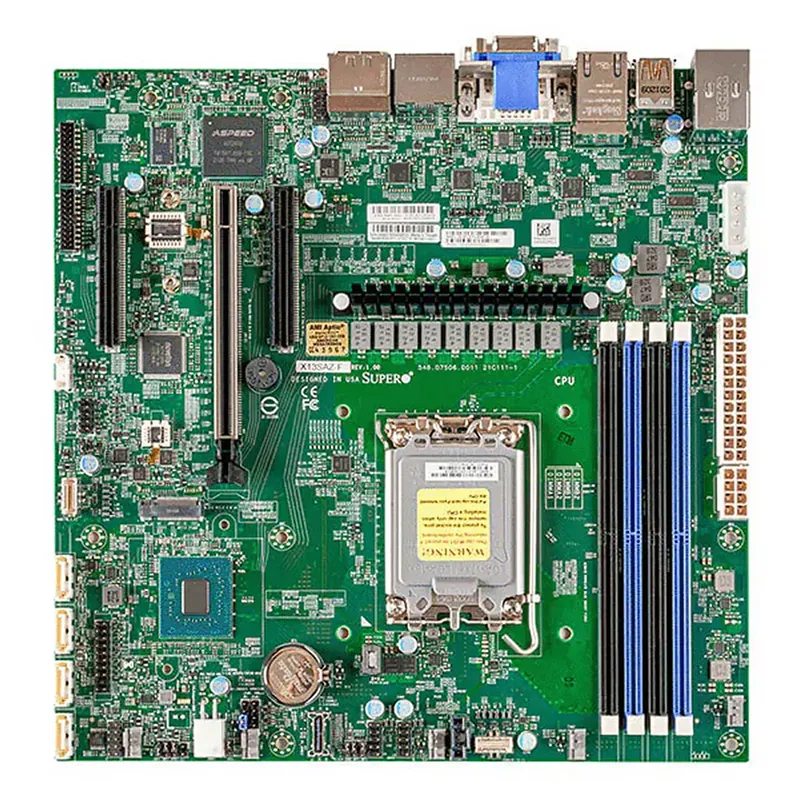

- MBD-X13SAZ-F
Physical Stats
- Form Factor
Micro-ATX
- Dimension
9.6″ x 9.6″ (24.38cm x 24.38cm)
Processor
- CPU
14th/13th/ 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
Single Socket V0 supported - Core
Up to 24 cores
System Memory
- Memory Capacity
4 DIMM slots
Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MT/s
*Supports up to 128GB of DDR5 UDIMM with speeds of up to 4400MT/s with one DIMM, or 4000MT/s with two DIMM single rank, or 3600MT/s with two DIMM dual rank in four memory slots - Memory Type
4400/4000/3600 MT/s
- DIMM Sizes
4GB, 8GB, 16GB, 32GB
- Memory Voltage
1.1V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel R680E
- SATA
Intel R680E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Audio
ALC 888S HD Audio
- Network Controllers
Dual LAN with Intel Ethernet i225LM
Input / Output
- SATA
4 SATA3 (6Gbps) port(s)
- USB
4 USB 2.0 port(s) (4 via header)
6 USB 3.2 Gen2 port(s) (4 rear type A; 2 via header)
2 USB 3.2 Gen1 port(s) (2 via header) - Video Output
1 VGA port(s), 1 DVI – D port(s), 1 HDMI 2.0b port(s), 2 DP (DisplayPort) port(s)
- Serial Port
4 COM Port(s) (2 header RS232/422/485; 2 header RS232)
- TPM
TPM TPM 2.0 onboard
Expansion Slots
- PCIe
1 PCIe 5.0 x16,
2 PCIe 4.0 x4 (in x8 slot) - M.2
M.2 Interface: 1 PCIe 4.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
- BIOS Type
AMI UEFI
- BIOS Features
ACPI 6.1
SMBIOS 3.0 or later
PCI FW 3.0
UEFI 2.7
RTC (Real Time Clock) Wakeup
Management
- System Management Software
Wake-on-LAN, Watchdog, KVM with dedicated LAN
- Power Configurations
ACPI Power Management, ATX Power connector, +12V DC Power Input
