| BIOS Features | ACPI 6.4SMBIOS 2.8/3.5UEFI 2.8APlug and Play (PnP)PCI FW 3.2 |
|---|---|
| TPM | 1 TPM Header |
| Network Controllers | Dual LANDual LAN with Broadcom BCM57416 10GBase-T |
| M.2 | M.2 Interface: 2 PCIe 4.0 x2Form Factor: 2280/22110Key: M-Key |
| Chipset | Intel C741 |
| DIMM Sizes | 128GB, 16GB, 256GBRDIMM: Up to 256GB, 32GB, 64GB, 96(XCC Only)GB |
| BIOS Type | AMI 32MB AMI UEFI |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| Video Output | 1 VGA D-Sub Connector port(s) |
| Dimension | 12.1" x 13.05" (30.74cm x 33.15cm) |
| PCIe | 2 PCIe 5.0 x8, 4 PCIe 5.0 x16 |
| USB | 3 USB 2 port(s) (2 via header; 1 Type A)6 USB 3 port(s) (2 via header; 4 rear) |
| Form Factor | E-ATX |
| Memory Type | 5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC) |
| Application | Server |
| IPMI | ASPEED AST2600 BMC |
| Others | 3 MCIO PCIe 5.0 x8 |
| Memory Voltage | 1.1V |
| CPU | 5th Gen Intel XeonDual Socket V0 (LGA-4677) supported, CPU TDP supports Up to 350W TDP |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| SATA | 8 SATA3 (6Gbps) port(s)2 SATA3 (6Gbps) port(s) |
| Memory Capacity | 16 DIMM slotsUp to 4TB 3DS ECC RDIMM, DDR5-5600MT/s |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Core | Up to 64 cores |

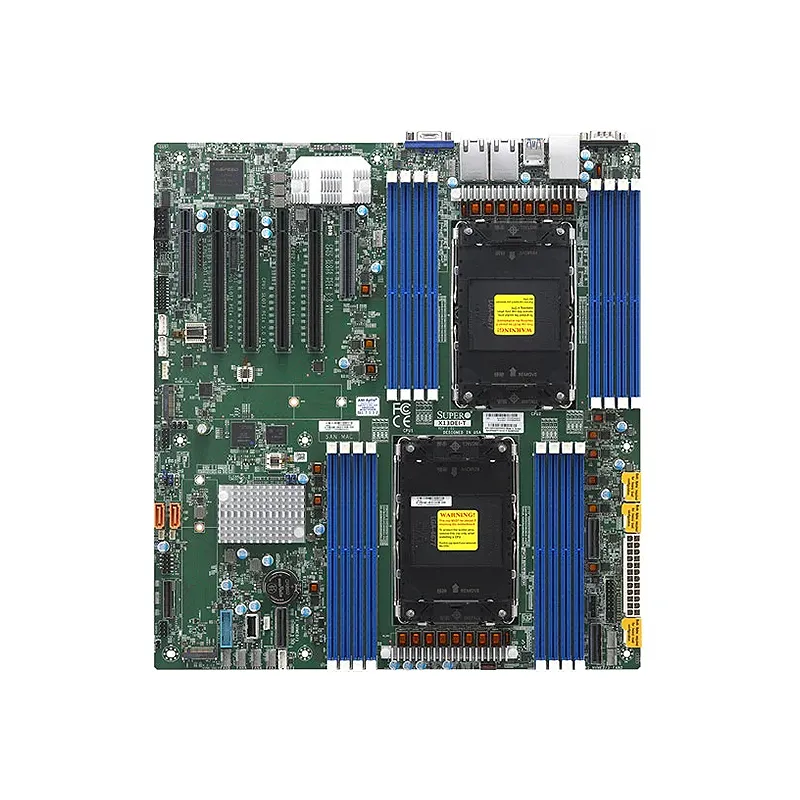

Supermicro MBD-X13DEI-B
The Supermicro MBD-X13DEI-B is a high-performance dual-socket server motherboard designed for Intel 4th Gen Xeon Scalable processors (Sapphire Rapids), supporting up to 2TB DDR5 ECC memory across 16 DIMM slots. It features dual 10GbE LAN ports, PCIe 5.0 support for high-speed expansion, and robust connectivity with multiple SATA and NVMe options. Built for enterprise workloads, it offers advanced manageability with IPMI 2.0 and Redfish support. Its optimized thermal design and reliability make it ideal for data centers, virtualization, and high-performance computing environments.
| BIOS Features： | ACPI 6.4SMBIOS 2.8/3.5UEFI 2.8APlug and Play (PnP)PCI FW 3.2 |
|---|---|
| TPM： | 1 TPM Header |
| Network Controllers： | Dual LANDual LAN with Broadcom BCM57416 10GBase-T |
| M.2： | M.2 Interface: 2 PCIe 4.0 x2Form Factor: 2280/22110Key: M-Key |
| Chipset： | Intel C741 |
