| BIOS Features | ACPI 6.0Plug and Play (PnP)BIOS rescue hot keysRiser card auto-detection supportSMBIOS 3.0 or later |
|---|---|
| Audio | ALC 888S HD Audio |
| TPM | 1 TPM Header |
| Network Controllers | Dedicated LAN for IPMI, Single LAN with Intel Ethernet i225LMSingle LAN with Intel PHY I219LM LAN controllerSingle LAN with Realtek RTL8211F PHY |
| M.2 | M.2 Interface: 1 PCIe 4.0 x4, RAID 0 & 1; 2 PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key |
| Chipset | Intel W580 |
| DIMM Sizes | 16GB, 2GB, 32GB, 4GB, 8GB |
| BIOS Type | 256MB SPI Flash with AMI BIOS |
| LAN | 1 RJ45 Dedicated IPMI LAN port1 RJ45 Gigabit Ethernet LAN ports1 RJ45 2.5 Gigabit Ethernet LAN port |
| Video Output | 1 DP 1.4a port(s), 1 DVI – D port(s), 1 HDMI 2.0b port(s), 1 VGA port(s) |
| Dimension | 12" x 9.6" (30.48cm x 24.38cm) |
| PCIe | 1 PCI PCI 5V 32bit, 2 PCIe 3.0 x1, 2 PCIe 4.0 x16 slots (16/NA or 8/8) |
| USB | 2 USB 2.0 port(s) (2 via header)4 USB 3.2 Gen2 port(s) (4 rear type A)2 USB 3.2 Gen1 port(s) (2 via header)2 USB 3.2 Gen2x2 port(s) (1 rear type C; 1 via header) |
| Form Factor | ATX |
| Memory Type | 128GB 3200MHz |
| Application | Server |
| IPMI | ASPEED AST2500 BMC |
| Memory Voltage | 1.2V |
| CPU | 10th Generation Intel Core i9/Core i7/Core i5/Core i3 ProcessorSingle Socket Socket H5 (LGA-1200) supported, 11th Generation Intel Core i5/i7/i9 Processors, CPU TDP supports Up to 125W TDP, Intel Xeon W-1200 Processors, Intel Xeon W-1300 Processors |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Serial Port | 1 COM Port(s) (1 header) |
| SATA | 1, 10, 5, Intel W580 controller for 6 SATA3 (6 Gbps) ports; RAID 0 |
| Memory Capacity | 4 DIMM slots128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MT/s |
| Core | Up to 10 cores |

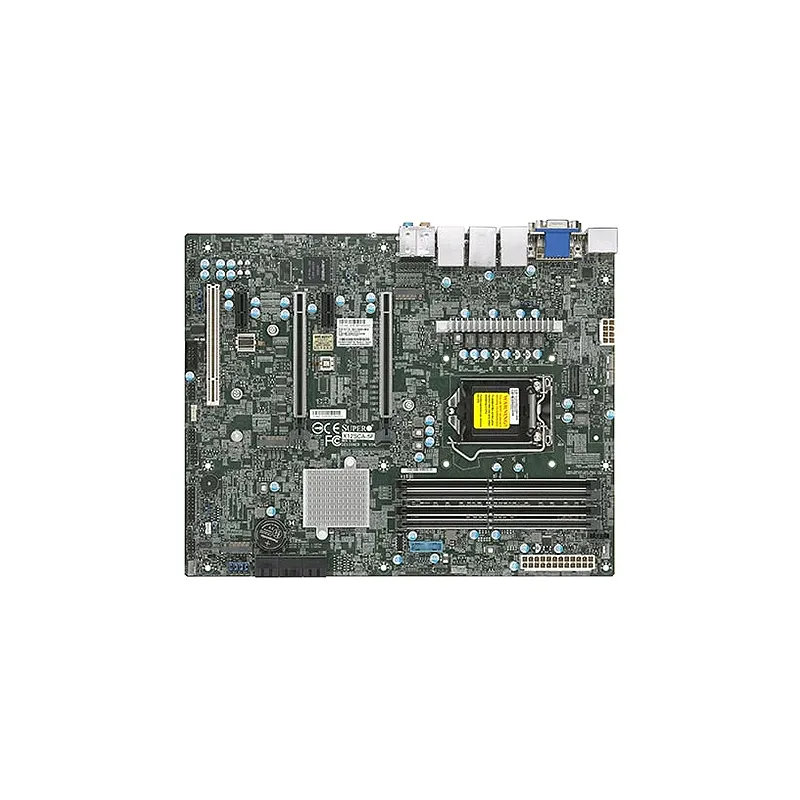

Supermicro MBD-X12SCA-5F-B
The Supermicro MBD-X12SCA-5F-B is a high-performance ATX motherboard designed for Intel Xeon W-1200 and 10th Gen Core processors, offering robust server-grade reliability and workstation-class features. It supports up to 128GB DDR4 ECC/non-ECC memory, features dual Intel Gigabit LAN for enhanced network performance, and includes IPMI 2.0 with dedicated LAN for remote management. With multiple PCIe 4.0/3.0 slots, M.2 and SATA support, and USB 3.2 connectivity, it delivers exceptional expandability and speed. Ideal for professional workstations, edge servers, and SMB applications, it combines enterprise-level stability with desktop flexibility.
| BIOS Features： | ACPI 6.0Plug and Play (PnP)BIOS rescue hot keysRiser card auto-detection supportSMBIOS 3.0 or later |
|---|---|
| Audio： | ALC 888S HD Audio |
| TPM： | 1 TPM Header |
| Network Controllers： | Dedicated LAN for IPMI, Single LAN with Intel Ethernet i225LMSingle LAN with Intel PHY I219LM LAN controllerSingle LAN with Realtek RTL8211F PHY |
| M.2： | M.2 Interface: 1 PCIe 4.0 x4, RAID 0 & 1; 2 PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key |
