| BIOS Features | Plug and Play (PnP)APM 1.2DMI 2.3PCI 2.3ACPI 1.0 / 2.0 / 3.0 / 4.0USB Keyboard supportHardware BIOS Virus protectionSMBIOS 2.7.1UEFI 2.3.1 |
|---|---|
| Graphics | 1 ASPEED AST2400 BMC port(s) |
| TPM | 1 TPM Header |
| Network Controllers | Dual LAN with Intel Ethernet Controller I210-AT |
| Chipset | Intel C236 |
| DIMM Sizes | 16GB, 4GB, 8GB |
| BIOS Type | 128MB SPI Flash EEPROM with AMI BIOS |
| Video Output | 1 VGA port(s) |
| Dimension | 9.6" x 9.6" (24.38cm x 24.38cm) |
| PCIe | 1 PCIe 3.0 x8, 1 PCIe 3.0 x8 (in x16 slot), 2 PCIe 3.0 x4 (in x8 slot) |
| USB | 6 USB 2.0 port(s) (4 via header; 2 rear)2 USB 3.0 port(s) (2 rear)3 USB 3 port(s) (2 via header; 1 type A) |
| Form Factor | Micro-ATX |
| Memory Type | 2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs |
| Application | Server |
| IPMI | ASPEED AST2400 BMC |
| Memory Voltage | 1.2V |
| CPU | CPU TDP supports Up to 80W TDP, Intel 7th/6th Generation Core i3 series, Intel Celeron, Intel Pentium, Intel Xeon processor E3-1200 v6/v5Single Socket LGA-1151 (Socket H4) supported |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| SATA | 1, 10, 5, Intel C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0 |
| Memory Capacity | 4 DIMM slots64GB Unbuffered ECC UDIMM, DDR4-2400MT/s |
| Error Detection | Corrects single-bit errors |

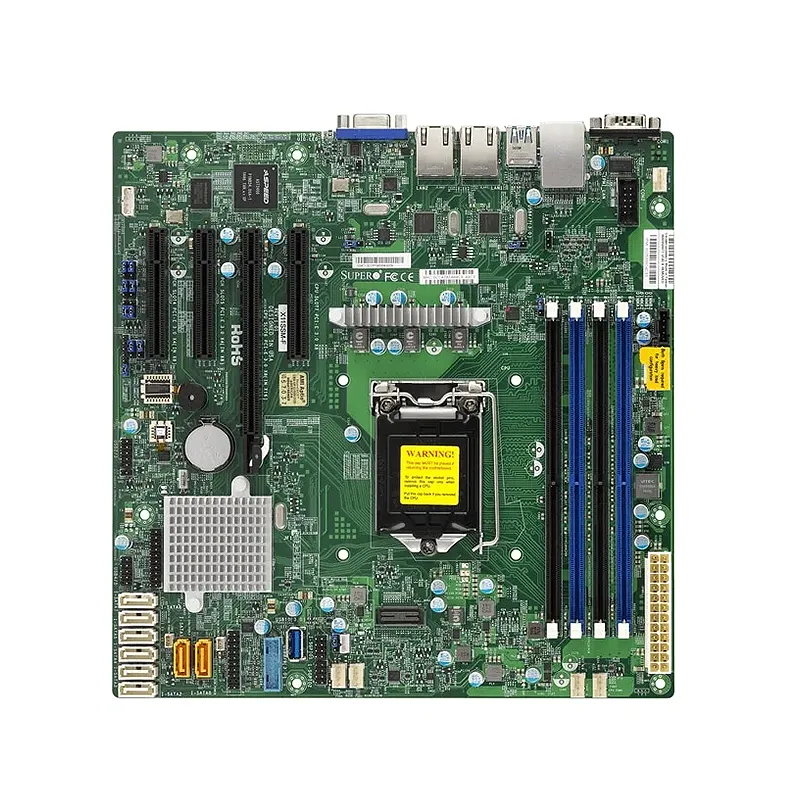

Supermicro MBD-X11SSM-F-B
The Supermicro MBD-X11SSM-F-B is a high-performance micro-ATX server motherboard designed for Intel Xeon E3-1200 v5/v6 and 6th/7th Gen Core processors. It features the Intel C236 chipset, supports up to 64GB ECC/non-ECC DDR4 memory, and offers robust connectivity with dual Intel Gigabit LAN ports. Key benefits include IPMI 2.0 with dedicated LAN for remote management, multiple expansion slots (PCIe 3.0 x16, x8, x4), and six SATA3 ports with RAID support. Its compact form factor, enterprise-grade reliability, and remote management capabilities make it ideal for small business servers, storage solutions, and virtualization environments.
| BIOS Features： | Plug and Play (PnP)APM 1.2DMI 2.3PCI 2.3ACPI 1.0 / 2.0 / 3.0 / 4.0USB Keyboard supportHardware BIOS Virus protectionSMBIOS 2.7.1UEFI 2.3.1 |
|---|---|
| Graphics： | 1 ASPEED AST2400 BMC port(s) |
| TPM： | 1 TPM Header |
| Network Controllers： | Dual LAN with Intel Ethernet Controller I210-AT |
| Chipset： | Intel C236 |
