| USB Ports | 8*USB 2.0 5*USB 3.0 |
|---|---|
| Product Name | Supermicro MBD-X11SPL-F-B |
| Processor | 2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors |
| TDP | Up to 165W TDP |
| Onboard LAN | Dual LAN with 1GbE with Intel I210 |
| Application | Server |
| Brand | Supermicro |
| Packaging Details | Bulk |
| Chipset | Intel C621 |
| Max Memory Speed | DDR4-2933MHz |
| CPU Socket Type | P (LGA 3647) |
| CPU Brand | Intel |
| Memory Capacity | 2TB 3DS ECC RDIMM 2TB 3DS ECC LDIMM Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only) |
| Warranty | 1 Year |
| Audio | N |
| PCI 32 bit | N |
| Products Status | New |
| Socket | LGA3647(Socket P) |
| Generation | X11 |
| Video | ASPEED AST2500 BMC |
| P/N | MBD-X11SPL-F-B |
| PCI-E 3.0 | 2 x8 (in x16 slot) 4 x8 1 x4 (in x8 slot) |
| Form Factor | ATX |

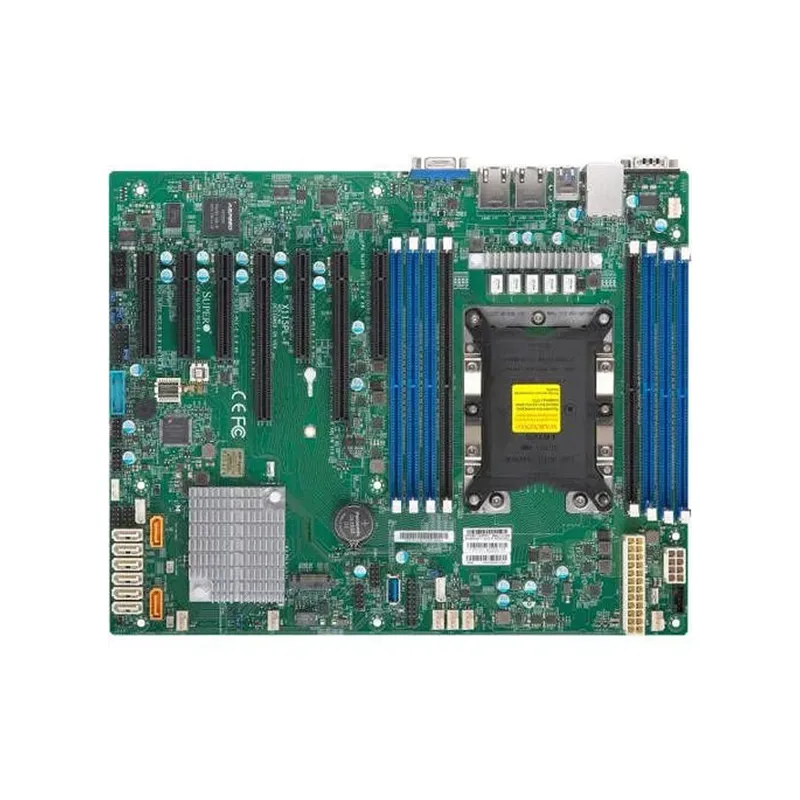

Supermicro MBD-X11SPL-F-B
The Supermicro MBD-X11SPL-F-B is a high-performance ATX server motherboard designed for Intel Xeon Scalable processors (LGA 3647), offering robust computing power for enterprise and data center applications. Key features include support for up to 512GB DDR4 ECC Registered memory across eight DIMM slots, dual 10GbE LAN via Intel X550, and multiple expansion options with seven PCIe 3.0 slots. It also includes IPMI 2.0 with dedicated LAN for remote management, ensuring efficient system monitoring and control. With its reliability, scalability, and advanced connectivity, this board is ideal for virtualization, storage, and high-demand server environments.
| USB Ports： | 8*USB 2.0 5*USB 3.0 |
|---|---|
| Product Name： | Supermicro MBD-X11SPL-F-B |
| Processor： | 2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors |
| TDP： | Up to 165W TDP |
| Onboard LAN： | Dual LAN with 1GbE with Intel I210 |
$532.14/pcs5 pcs(MOQ)
Bulk Order Discounts Available
⚠️ Wholesale & B2B Inquiries Only! We partner exclusively with established businesses for bulk procurement, no individual, personal, or retail orders.
US Local Warehouse for Fast & Reliable Wholesale Fulfillment
Same-Day Shipping Available
U.S. Based After-Sales Support
Reliable Inventory
