| BIOS Features | ACPI 6.4SMBIOS 3.5 or laterUEFI 2.8Plug and Play (PnP)USB Keyboard support |
|---|---|
| TPM | 1 TPM Header |
| Network Controllers | Dual LAN with Broadcom BCM5720 1GBase-T |
| M.2 | M.2 Interface: 2 SATA/PCIe 4.0 x4Form Factor: 2280/22110Key: M-Key |
| Chipset | System on Chip |
| DIMM Sizes | 128GB, 16GB, 192GB, 24GB, 256GB, 32GB, 384GB, 48GB, 64GB, 96GB |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| Video Output | 1 VGA port(s) |
| Dimension | 12" x 10.1" (30.48cm x 25.65cm) |
| PCIe | 2 PCIe 5.0 x8, 3 PCIe 5.0 x16 (in x16 slot) |
| USB | 6 USB 3.0 port(s) (4 USB; 2 via header) |
| Form Factor | ATX |
| Memory Type | 4800/6000 MT/s ECC DDR5 RDIMM (3DS) |
| Application | Server |
| Others | 1 MCIO (PCIe 5.0 x8/SATA3) Port(s)2 MCIO (PCIe 5.0 x8) Port(s) |
| Memory Voltage | 1.1V |
| CPU | AMD EPYC 9004/9005 Series Processors (*AMD EPYC 9005 series drop-in support requires board revision 2.x)Single Socket SP5 supported, CPU TDP supports Up to 400W TDP |
| Serial Port | 1 COM Port(s) (1 header) |
| SATA | 8 SATA3 (6Gbps) port(s) |
| Memory Capacity | 12 DIMM slotsUp to 4.5TB 3DS ECC Registered RDIMM, DDR5-6000MT/s |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Core | 320 threads, Up to 160 cores |

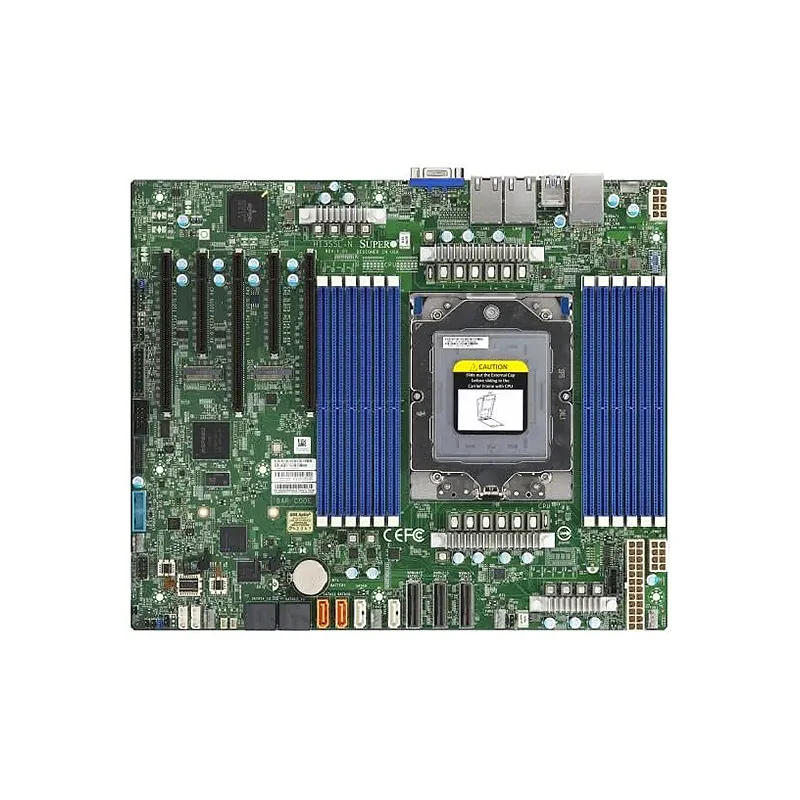

Supermicro MBD-H13SSL-N-B
The Supermicro MBD-H13SSL-N-B is a high-performance ATX server motherboard designed for enterprise and data center applications. It supports AMD EPYC 9004 Series processors, offering exceptional compute power and scalability. Key features include 8 DDR5 DIMM slots for up to 2TB of high-speed memory, dual 10GbE LAN ports for fast networking, and multiple PCIe 5.0 slots for advanced expansion capabilities. With robust storage options including 6 SATA3 ports and support for NVMe, it ensures high data throughput. Its reliability, cutting-edge performance, and future-ready architecture make it ideal for demanding workloads like virtualization, cloud computing, and AI.
| BIOS Features： | ACPI 6.4SMBIOS 3.5 or laterUEFI 2.8Plug and Play (PnP)USB Keyboard support |
|---|---|
| TPM： | 1 TPM Header |
| Network Controllers： | Dual LAN with Broadcom BCM5720 1GBase-T |
| M.2： | M.2 Interface: 2 SATA/PCIe 4.0 x4Form Factor: 2280/22110Key: M-Key |
| Chipset： | System on Chip |
$700.93/pcs – $919.97/pcs5 pcs(MOQ)
Bulk Order Discounts Available
Submit Inquiry
Save up to 30% on bulk orders
