| Brand | Supermicro |
|---|---|
| Products Status | New |
| Form Factor | 4U Rackmount |
| Model | SSG-640P-E1CR24L |
| Application | Server |
| Chassis Form Factor | 4U Rackmount |
| Height | 7" (178mm) |
| Width | 17.2" (437mm) |
| Depth | 26" (660mm) |
| Chipset | Intel C621A |
| Weight | Net Weight: 86 lbs (39 kg) Gross Weight: 118 lbs (53.52 kg) |
| Memory | Slot Count: 16 DIMM slots Max Memory (2DPC): 3200MT/s ECC DDR4 RDIMM;LRDIMM;DCPMM |
| CPU | Dual Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors |
| Motherboard | Super X12DPi-NT6 |
| Product SKUs | SuperServer SSG-640P-E1CR24L (Black) |
| Chassis Model | CSE-846BE1C-R1K23B |
| Note | Supports 120W – 270W TDP CPUs (Air Cooled) |
| Network Connectivity | 2x 10GbE BaseT with Intel X550 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Package | 26.5" (H) x 34.3" (W) x 13.5" (D) |
| Core Count | Up to 38C/76T; Up to 57MB Cache per CPU |

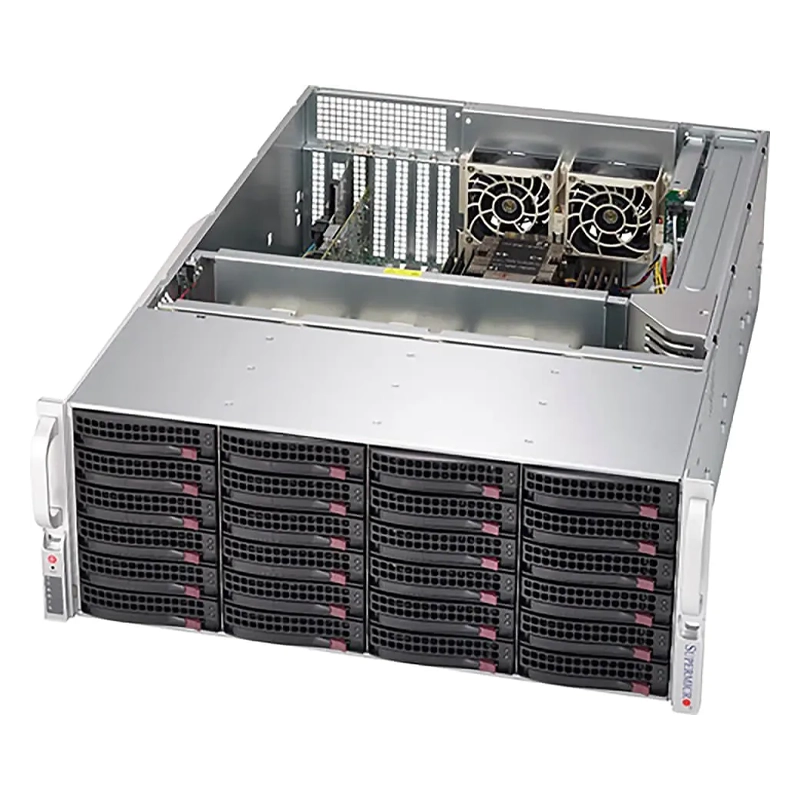

Storage SuperServer SSG-640P-E1CR24L
The Storage SuperServer SSG-640P-E1CR24L is a high-performance, enterprise-grade storage server designed for data-intensive applications. It features dual 3rd Gen Intel Xeon Scalable processors, up to 6TB of DDR4 memory, and supports 24 hot-swappable 3.5″ drive bays for high-capacity storage. With integrated Broadcom 3108 SAS3 hardware RAID, redundant 1600W power supplies, and advanced cooling, it ensures reliability and uptime. Its flexible architecture supports NVMe, SAS, and SATA drives, making it ideal for cloud storage, big data, and enterprise IT environments. The SSG-640P-E1CR24L delivers exceptional scalability, performance, and data protection in a 4U form factor.
| Brand： | Supermicro |
|---|---|
| Products Status： | New |
| Form Factor： | 4U Rackmount |
| Model： | SSG-640P-E1CR24L |
| Application： | Server |
