- Dual socket 3rd Gen Intel? Xeon? Scalable processors, up to 72 Cores Per Node
- 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel? Optane? Persistent Memory Dedicated Slots
-
- 2x 10Gbe
- Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
- 24 3.5″/2.5″ Hot-swap SAS3/SATA3 drives, 2x Rear SATA Slots, 1x SATA/NVMe M.2 (form factor: 2280 and 22110)
- 5x 8cm hot-swap counter-rotate redundant PWM cooling fans
- 1200W Redundant Power Supplies Titanium Level (96%)
- HW RAID support via Broadcom? 3908

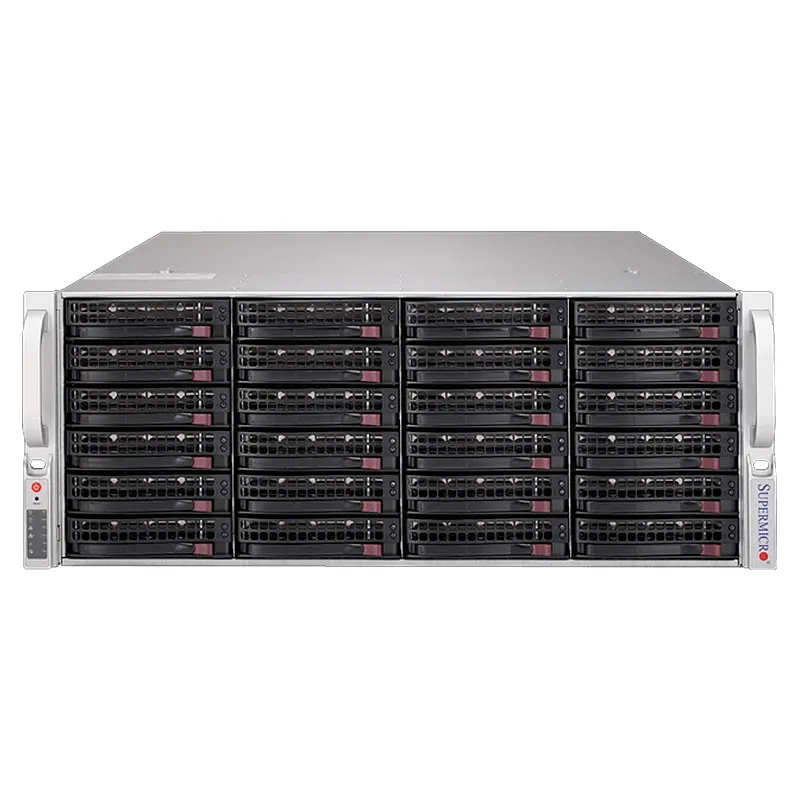

Storage SuperServer SSG-640P-E1CR24H
The Storage SuperServer SSG-640P-E1CR24H is a high-performance, enterprise-grade storage server designed for data-intensive applications. It features dual 3rd Gen Intel Xeon Scalable processors, up to 6TB of DDR4 memory, and supports 24 hot-swappable 3.5″ drive bays for high-capacity storage. With integrated Broadcom 3108 SAS3 hardware RAID, redundant 1600W power supplies, and advanced cooling, it ensures reliability and uptime. Its flexible architecture supports NVMe, SAS, and SATA drives, making it ideal for software-defined storage, big data, and cloud infrastructure. The SSG-640P-E1CR24H delivers exceptional scalability, performance, and efficiency in a 4U form factor.
| Brand： | Supermicro |
|---|---|
| Products Status： | New |
| Form Factor： | 4U Rackmount |
| Model： | SSG-640P-E1CR24H |
| Application： | Server |
$Quote1 Piece(MOQ)
Bulk Order Discounts Available
| Brand | Supermicro |
|---|---|
| Products Status | New |
| Form Factor | 4U Rackmount |
| Model | SSG-640P-E1CR24H |
| Application | Server |
| Chassis Form Factor | 4U Rackmount |
| Height | 7" (178mm) |
| Width | 17.2" (437mm) |
| Depth | 26" (660mm) |
| Chipset | Intel C621A |
| Weight | Net Weight: 86 lbs (39 kg) Gross Weight: 118 lbs (53.52 kg) |
| Memory | Slot Count: 16 DIMM slots Max Memory (2DPC): 3200MT/s ECC DDR4 RDIMM;LRDIMM;DCPMM |
| CPU | Dual Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors |
| Motherboard | Super X12DPi-NT6 |
| Product SKUs | SuperServer SSG-640P-E1CR24H (Black) |
| Chassis Model | CSE-846BE1C-R1K23B |
| Note | Supports 120W – 270W TDP CPUs (Air Cooled) |
| Network Connectivity | 2x 10GbE BaseT with Intel X550 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Package | 26.5" (H) x 34.3" (W) x 13.5" (D) |
| Core Count | Up to 38C/76T; Up to 57MB Cache per CPU |
