| Brand | Supermicro |
|---|---|
| Products Status | New |
| Form Factor | 2U Rackmount |
| Model | SSG-620P-E1CR24L |
| Application | Server |
| Chassis Form Factor | 2U Rackmount |
| Height | 3.5" |
| Width | 17.2" |
| Depth | 34" |
| Chipset | Intel C621A |
| Weight | Net Weight: 52 lbs (23.59 kg) Gross Weight: 74.5 lbs (33.79 kg) |
| Memory | Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
| CPU | Dual Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors |
| Motherboard | Super X12DSC-A6 |
| Product SKUs | SuperServer SSG-620P-E1CR24L (Silver) |
| Chassis Model | CSE-826STS-R1K62P1 |
| Note | Supports 120W – 205W TDP CPUs (Air Cooled) |
| Network Connectivity | Via AIOM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Package | 12" (H) x 29" (W) x 52" (D) |
| Core Count | Up to 38C/76T; Up to 57MB Cache per CPU |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| Max GPU Count | Up to 2 double-width GPU(s) |

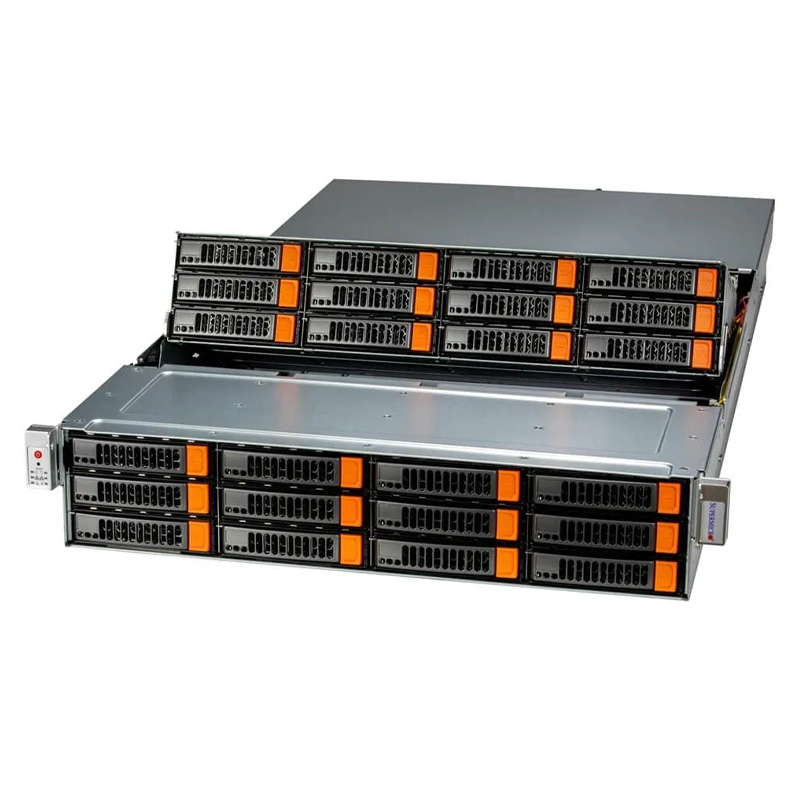

Storage SuperServer SSG-620P-E1CR24L
The Storage SuperServer SSG-620P-E1CR24L is a high-performance, enterprise-grade storage server designed for data-intensive applications. It features dual Intel Xeon Scalable processors, supports up to 3TB of DDR4 memory, and offers 24 hot-swappable 3.5″ drive bays for high-capacity storage. With integrated 12Gb/s SAS3 support and advanced RAID capabilities, it ensures fast, reliable data access and protection. Its redundant power supplies and optimized cooling enhance system reliability and uptime. Ideal for enterprise storage, software-defined storage, and data center deployments, the SSG-620P-E1CR24L delivers scalability, performance, and efficiency in a 2U form factor.
| Brand： | Supermicro |
|---|---|
| Products Status： | New |
| Form Factor： | 2U Rackmount |
| Model： | SSG-620P-E1CR24L |
| Application： | Server |
