| Brand | Supermicro |
|---|---|
| Products Status | New |
| Applications | Application and data serving, Compute Intensive Applications, Enterprise Server, Virtualization |
| Max GPU | 2 |
| CPU Type | 5th Gen Intel Xeon/4th Gen Intel Xeon Scalable processors |
| Total PCI-E Slots | 6 |
| Drives | 8 |
| Drive Form Factors | 3.5" |
| Form Factor | 2U |
| Generation | X13 |
| Interface | NVMe (Optional), SATA (Native) |
| SATA | SATA (6Gbps) |
| LED | HDD activityNetwork activityPower statusSystem information (overheat/UID) |
| Serial | 1 COM port(Rear)1 COM port(Front) |
| Network Connectivity | 2 RJ45 10GbEView AOC Options |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Package | 11.4" (H) x 26.7" (W) x 34.5" (D) |
| Depth | 25.5" (647 mm) |
| Fans | 3 middle 8cm Fan(s) |
| Height | 3.5" (89 mm) |
| Buttons | Power On/OffSystem Reset |
| Peripheral Bays | 1 slim DVD bay (optional) |
| M.2 | 2 M.2 NVMe slots (M-key) |
| Memory | Slot Count: 16 DIMM slotsMax Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMMView Memory Options |
| Width | 17.2" (437 mm) |
| Video | 1 VGA port |
| ROHS | RoHS Compliant |
| Note | Supports up to 300W TDP CPUs (Air Cooled) |
| Weight | Gross Weight: 69 lbs (31.2 kg)Net Weight: 36.38 lbs (16.5 kg) |
| Drive Bays Configuration | Default: Total 8 bays(*NVMe/SAS support may require additional storage controller and/or cables) |
| USB | 2 USB 2.0 ports(front)4 USB 3.0 ports(rear) |
| Available Color | Black |
| PCI-Express (PCIe) Configuration | Default |
| TPM | 1 TPM Onboard/port 80 |
| CPU | Dual Socket E (LGA-4677)5th Gen Intel Xeon |
| Chipset | Intel C741 |
| DOM | DOM |

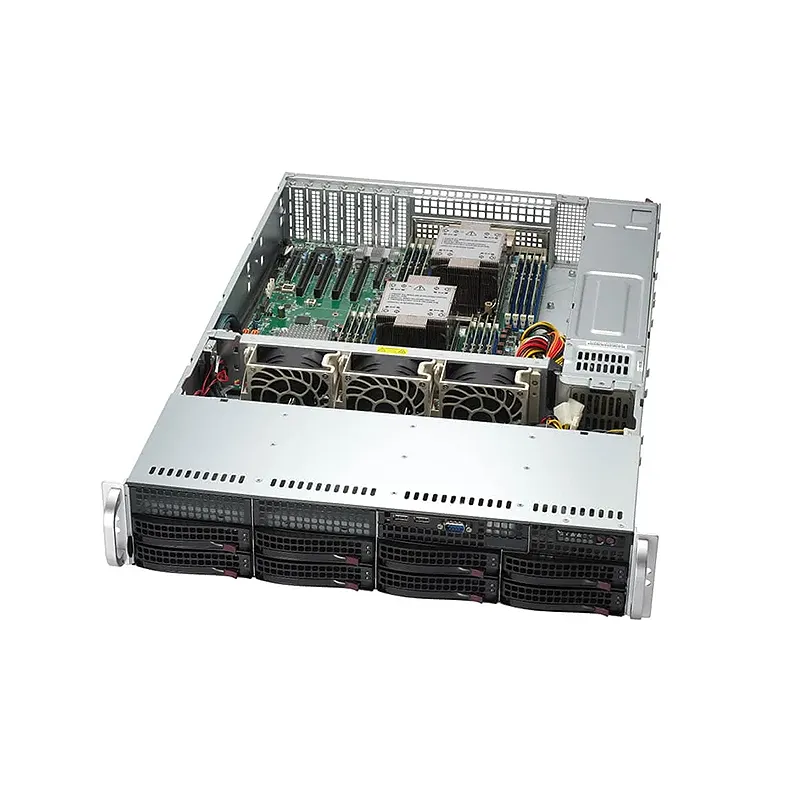

Mainstream SuperServer SYS-621P-TRT
The Mainstream SuperServer SYS-621P-TRT is a high-performance 2U rackmount server designed for enterprise and data center applications. Powered by dual 4th Gen Intel Xeon Scalable processors, it supports up to 2TB of DDR5 memory across 32 DIMM slots, delivering exceptional speed and scalability. Key features include 12 hot-swap 3.5″ drive bays (SATA/SAS/NVMe support), dual 10GBase-T Ethernet ports, and multiple PCIe 5.0 slots for advanced expansion. Its tool-less design, redundant power supplies, and optimized airflow ensure reliability and ease of maintenance. Ideal for virtualization, cloud computing, and high-throughput workloads, the SYS-621P-TRT offers a balanced blend of performance, flexibility, and efficiency.
| Brand： | Supermicro |
|---|---|
| Products Status： | New |
| Applications： | Application and data serving, Compute Intensive Applications, Enterprise Server, Virtualization |
| Max GPU： | 2 |
| CPU Type： | 5th Gen Intel Xeon/4th Gen Intel Xeon Scalable processors |
