Features
Increased performance and reduced power consumption with a dash of wow.

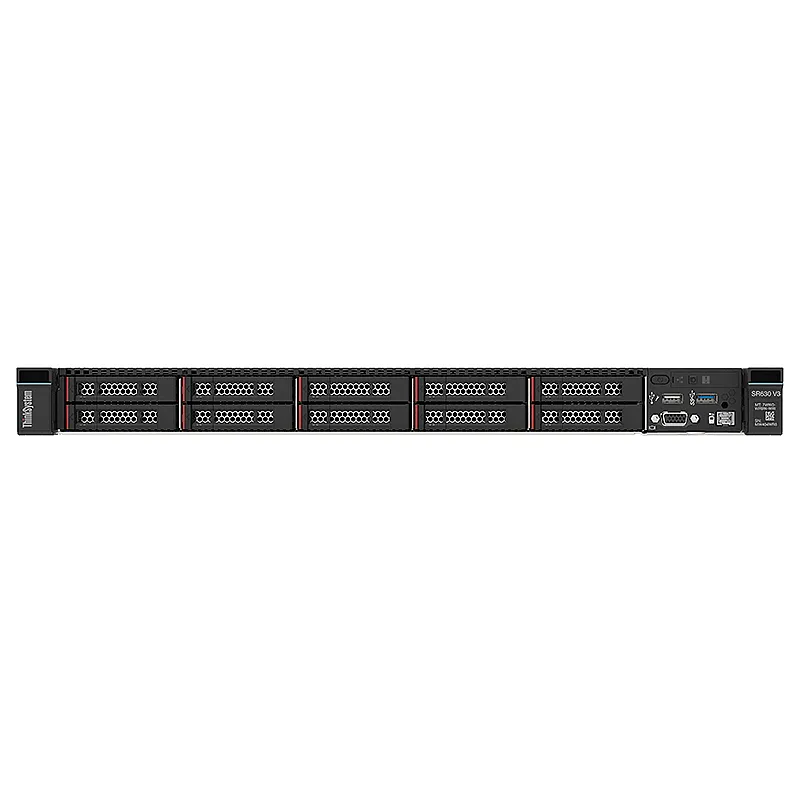

The dual processor ThinkSystem SR630 V3 server is a 1U server maximized for performance. With the 5th Gen Intel ® Xeon ® Scalable processors it provides better performance over the previous generation. When you factor in 32 DIMMs of DDR5 memory, PCIe Gen5 technology, up to EDSFF E1.S drives thru direct NVMe, it offers the speed and density desired by cloud service providers and enterprises
Lenovo innovation increases performance in the SR630 V3 while reducing power consumption by adding in optional Neptune™ liquid cooling.
Next-gen workloads handled at the flip of a switch
Processing power is king when it comes to new applications and technology. Applications are evolving and requirements are changing creating next-gen workloads. Cloud Service providers and Enterprise applications require the ability to scale up and down easily to efficiently manage these workloads and their client’s needs. The SR630 V3 is designed with flexible storage, support for PCIe Gen5, intuitive data management, and security.
Easy management and enhanced security in one smart server.
The SR630 V3 includes Lenovo ThinkShield security software. ThinkShield prevents, detects and remediates against attacks, providing security in the supply chain, below the OS in the server, and from the OS to the cloud. The XClarity system manager simplifies infrastructure processes saving time during deployments, handling faults, and adding new servers to the network. It also adds security by monitoring log events and letting you choose from 3 security modes.
Tech Specs
| Form Factor/Height |
1U rack server
|
| Processor |
Up to 2x 5th Gen Intel ® Xeon ® Scalable processors, up to 64 cores and 350W TDP
|
| Drive Bays |
-

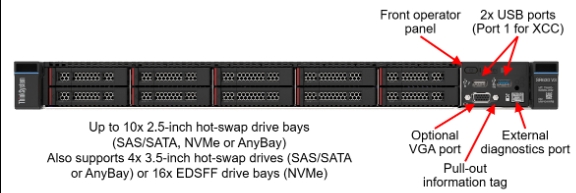

Up to 4x 3.5” or 12x 2.5” or 16x EDSFF E1.S drives
-

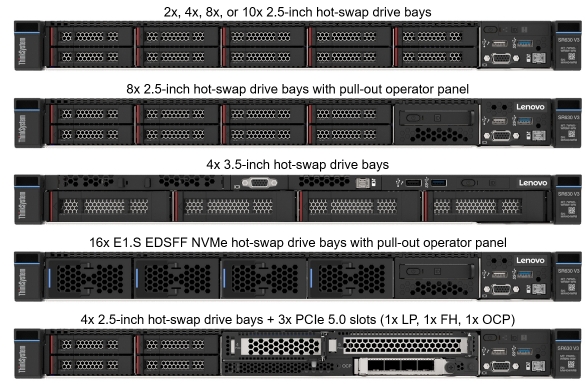

Front: up to 4x 3.5” / 10x 2.5” /16x EDSFF E1.short hot swap drives
-
Rear: 2x 2.5”; 7mm SATA/NVMe hot-swap boot drives, support RAID
-
Internal 2x M.2 SATA/NVMe boot drives, support RAID
-
Direct NVMe, VROC/VMD, and onboard SATA with SW RAID (0,1,5,10)
|
| Memory |
Supports up to 32x TruDDR5 3DS/RDIMMs
|
| Expansion Slots |
Up to 5x PCIe 4.0/5.0 slots, 1x OCP 3.0 slot, 1x cabled internal HBA/RAID adapter that doesn’t occupy a standard PCIe slot
|
| GPUs |
Up to 3x single-width 75W GPUs
|
| Network Interface |
LOM adapter installed in the OCP 3.0 slot, optional for front access Networking PCIe adapters
|
| Ports |
-
Front: 1x USB 3.1 G1, 1x USB 2.0 for BMC, 1x VGA (optional), 1x external diagnostics handset port (optional)
-
Rear: 3x USB 3.0 G1, 1x VGA, 1x 1GbE RJ45 (management), 2nd 1GbE management port (optional in OCP slot location), and 1x Serial port (optional)
|
| HBA/RAID Support |
SATA with SW RAID (0,1,5,10); Common building blocks including standard and Internal PCIe RAID/HBA adapters.
|
| Power |
Dual Redundant AC & DC; Platinum & Titanium; 750W, 1100W, 1800W, and 1100W -48V DC Platinum
|
| Systems Management |
Lenovo XClarity Controller
|
| OSes Supported |
Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for more information.
|
| Limited Warranty |
1-year and 3-year customer replaceable unit and onsite service, next business day 9×5; optional service upgrades
|
The Lenovo ThinkSystem SR630 V3 Rack Server is a high-performance, versatile solution designed for enterprise workloads. It features the latest Intel Xeon Scalable processors, delivering exceptional computing power and efficiency. With its flexible storage options, extensive memory capacity, and advanced security features, the SR630 V3 is ideal for a wide range of applications, from cloud computing to data analytics. Its robust design ensures reliability and scalability, making it a perfect choice for businesses seeking to optimize their IT infrastructure.
