- 2.5″ x 15mm, U.2 Form Factor
- Intel Optane Media
- PCIe NVMe 4.0 x4
- Very high endurance – 73,000 TBW (100 DWPD)
- Optimize for write intensive workloads

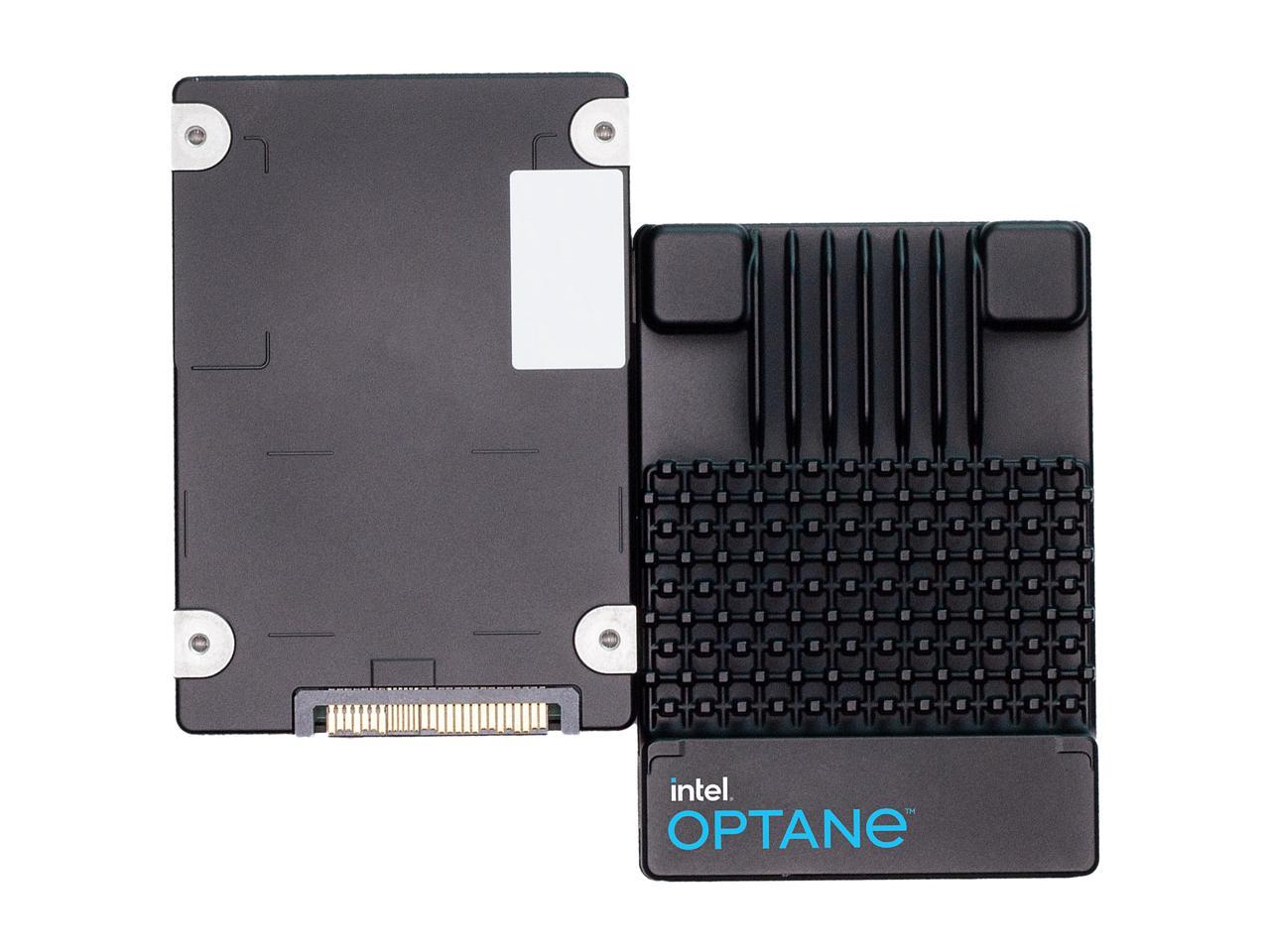

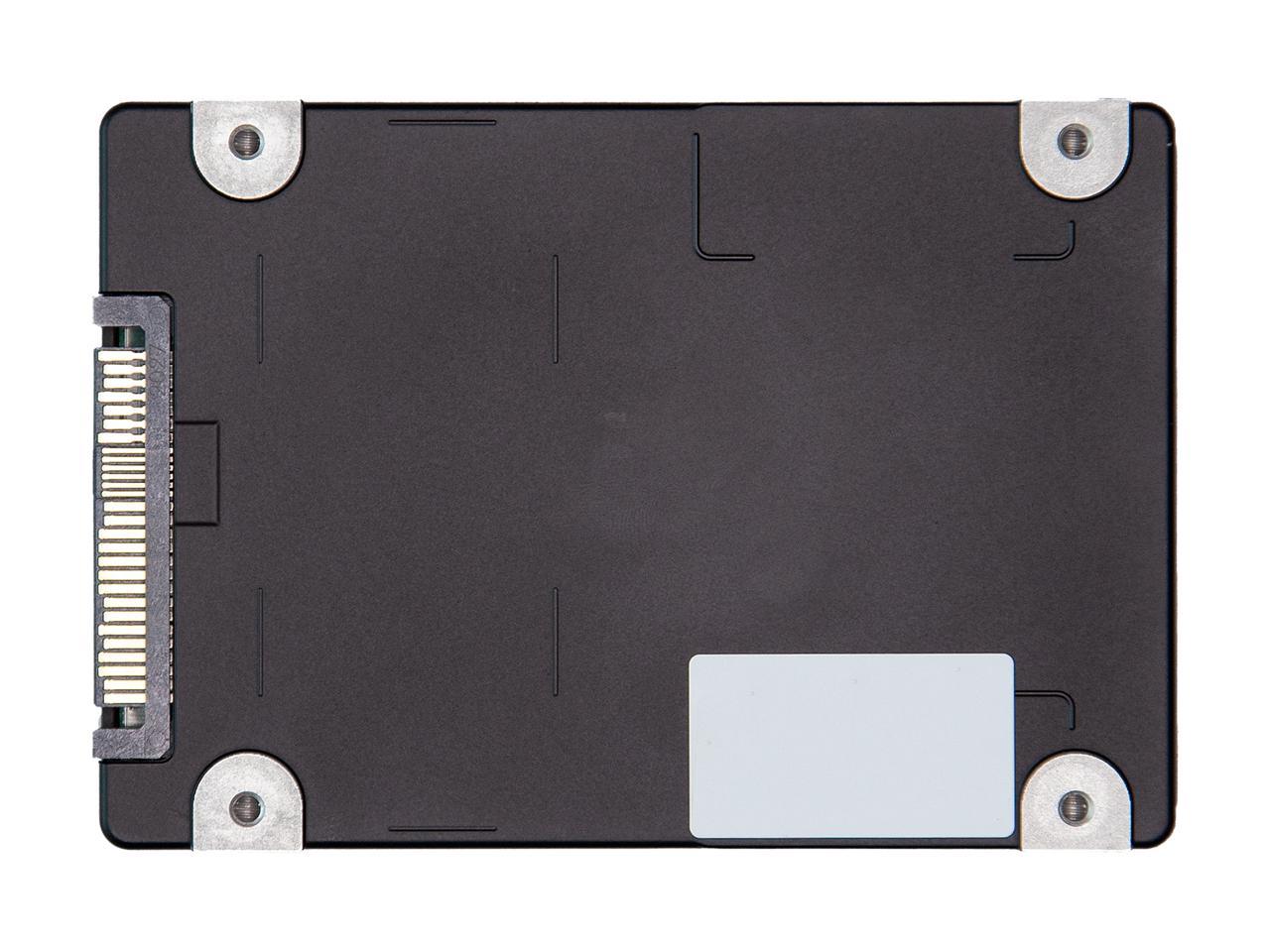

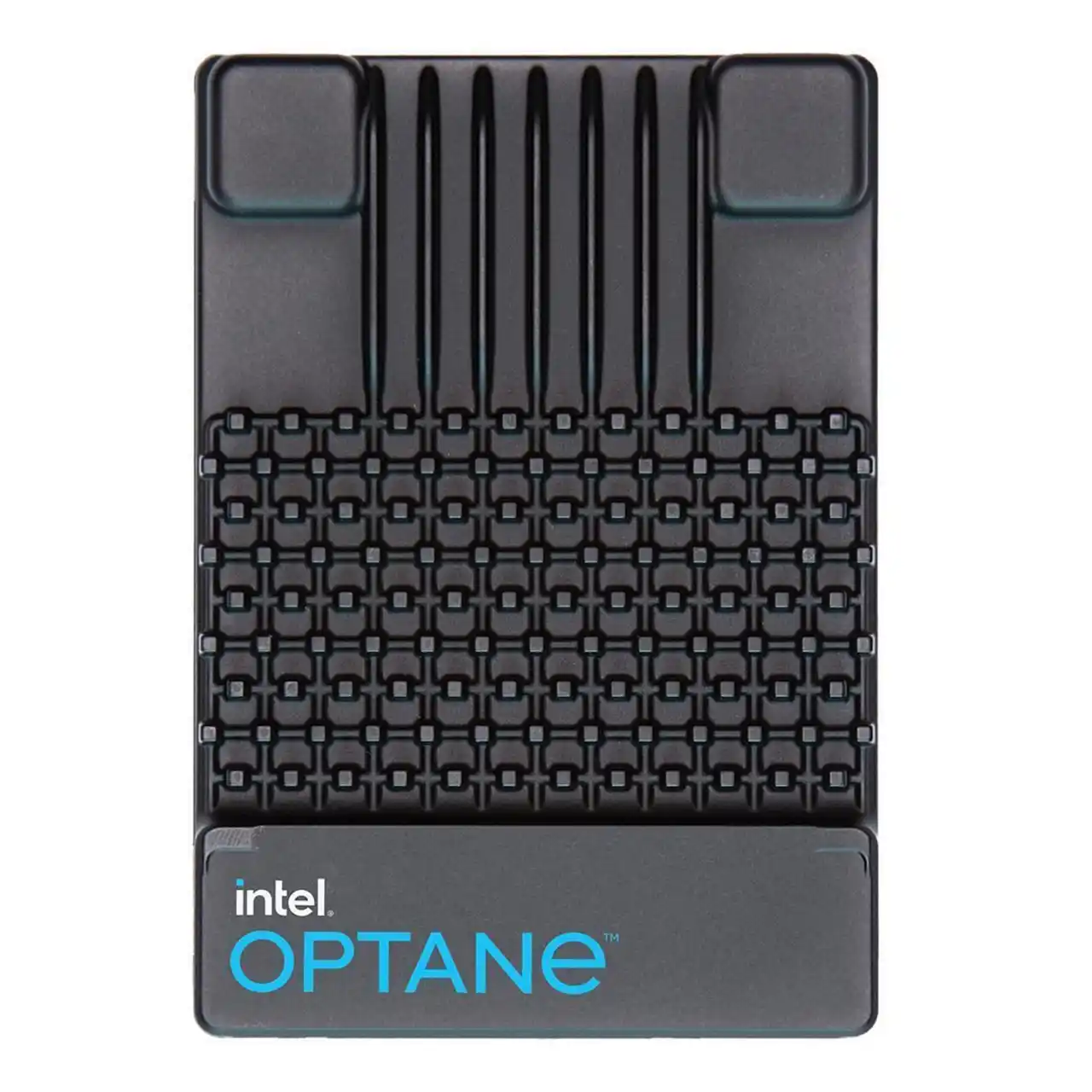

Intel Optane DC P5800X Series 400GB, 2.5″ x 15mm, U.2, PCIe 4.0 x4, 3D XPoint Solid State Drive (SSD) SSDPF21Q400GB01
The Intel Optane DC P5800X Series 400GB SSD is a high-performance enterprise storage solution designed for data-intensive workloads. Featuring Intel’s advanced 3D XPoint technology, it delivers ultra-low latency, exceptional endurance, and consistent performance. With a U.2 form factor, PCIe 4.0 x4 interface, and 2.5″ x 15mm size, it offers up to 7.2 GB/s sequential read and 6.2 GB/s write speeds, along with up to 1.5 million IOPS. Its industry-leading endurance of up to 100 drive writes per day (DWPD) makes it ideal for write-intensive applications. The P5800X stands out for its reliability, responsiveness, and ability to accelerate critical workloads in data centers.
| Power Consumption (Active)： | 14W |
|---|---|
| Memory Components： | 3D XPoint |
| Max Shock Resistance： | 1 000 G 0.5 ms half sine |
| Form Factor： | 2.5" U.2 |
| Max Sequential Read： | Up to 7200 MB/s |
$Quote
| Power Consumption (Active) | 14W |
|---|---|
| Memory Components | 3D XPoint |
| Max Shock Resistance | 1 000 G 0.5 ms half sine |
| Form Factor | 2.5" U.2 |
| Max Sequential Read | Up to 7200 MB/s |
| Capacity | 400GB |
| Brand | Intel |
| Model | SSDPF21Q400GB01 |
| Series | Optane SSD DC P5800X |
| Features | End-to-End Data Protection: Yes, Endurance Rating (Lifetime Writes): 100 DWPD, Enhanced Power Loss Data Protection: Yes, Hardware Encryption: AES 256 bit, High Endurance Technology (HET): Yes, Temperature Monitoring and Logging: Yes |
| Interface | PCIe 4.0 x4 NVMe |
| Power Consumption (Idle) | 3.8W |
| Max Vibration Resistance | Non-Operating: 3.13 Grms (5-800 Hz) random, Operating: 2.17 Grms (5-700 Hz) random |
| MTBF | 2 000 000 hours |
| Application | Server |
| Products Status | New |
| Max Sequential Write | Up to 4800 MB/s |
| Height | 15.00mm |
| Weight | 140.00g |
| Operating Temperature | 0C ~ +70C |
