| Memory Types | DDR5-4800 |
|---|---|
| # of Displays Supported | 4 |
| Code Name | Products formerly Raptor Lake |
| Max # of Memory Channels | 2 |
| TDP | 65 W |
| Hyper-Threading Support | Yes |
| T JUNCTION | 100C |
| Model | BX8071513500 |
| Total Threads | 20 |
| Manufacturing Tech | Intel 7 |
| PCI Express Revision | 5.0 and 4.0 |
| OpenCL* Support | 3 |
| Shipping Media | BOX |
| # of Efficient-cores | 8 |
| Max CPU Configuration | 1 |
| PCI Express Configurations | 2×8+4, Up to 1×16+4 |
| ECC Memory Supported | Yes |
| Brand | Intel |
| # of Performance-cores | 6 |
| Execution Units | 32 |
| Intel Quick Sync Video | Yes |
| Embedded Options Available | Yes |
| Processor Base Frequency | 2.50 GHz |
| Scalability | 1S Only |
| Max Turbo Frequency | 4.80 GHz |
| 64-Bit Support | Yes |
| Series | Intel Core i5 (13th gen) |
| Package Size | 45.0 mm x 37.5 mm |
| DirectX* Support | 12 |
| Max # of PCI Express Lanes | 20 |
| Graphics Max Dynamic Frequency | 1.55 GHz |
| Max Memory Bandwidth | 76.8 GB/s |
| Max Operating Temperature | 100 C |
| CPU Socket Type | FCLGA1700 |
| Application | Desktop |
| Graphics Base Frequency | 300 MHz |
| Graphics Output | DP 1.4a, eDP 1.4b, HDMI 2.1 |
| Cache | 24 MB |
| Part Number | i5-13500 |
| Total Cores | 14 |
| Max Memory Size | 192 GB |
| Products Status | New |
| Instruction Set | 64-bit |
| Clear Video HD Technology | Yes |
| OpenGL* Support | 4.5 |
| Device ID | 0x4680 |

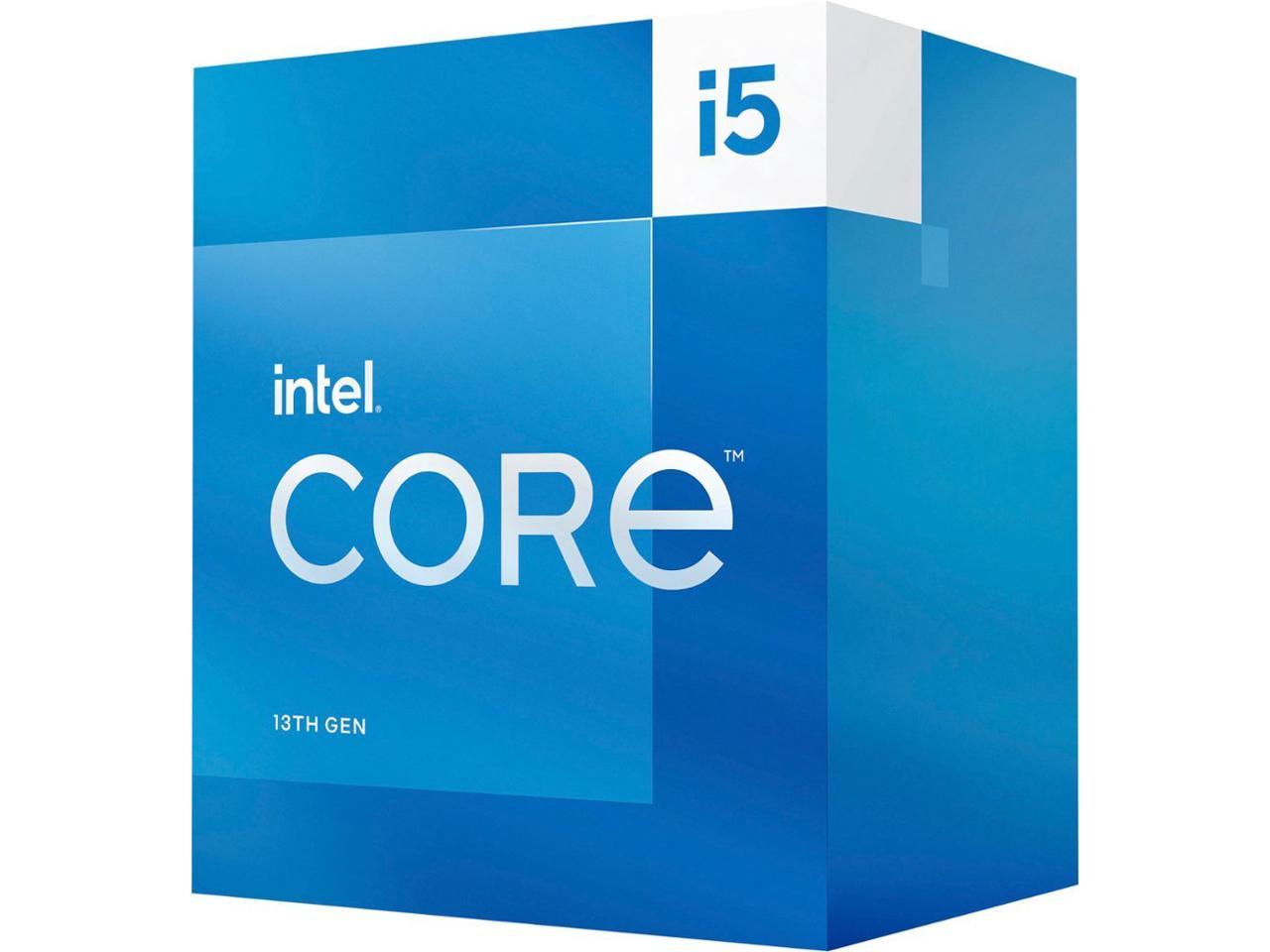

Intel Core i5-13500 Desktop Processor (24M Cache, up to 4.80 GHz)
The Intel Core i5-13500 Desktop Processor delivers powerful performance with 14 cores (6 Performance-cores and 8 Efficient-cores), a 24MB cache, and speeds up to 4.80 GHz. Built on Intel’s hybrid architecture, it excels in multitasking, gaming, and productivity workloads. It supports DDR5 and DDR4 memory, PCIe 5.0, and is compatible with Intel 600 and 700 series chipsets, offering future-ready connectivity. With integrated Intel UHD Graphics 770, it provides solid visual performance without a discrete GPU. The i5-13500 strikes an ideal balance between performance and value, making it a standout choice for mainstream desktop users.
| Memory Types： | DDR5-4800 |
|---|---|
| # of Displays Supported： | 4 |
| Code Name： | Products formerly Raptor Lake |
| Max # of Memory Channels： | 2 |
| TDP： | 65 W |
