| Brand | Supermicro |
|---|---|
| Products Status | New |
| Applications | AI Inference and Machine Learning, Cloud Computing, Enterprise Server, Software-defined Storage, Virtualization |
| Max GPU | 2 |
| CPU Type | AMD EPYC 9004/9005 Series Processors |
| Total PCI-E Slots | 8 |
| Drives | 12 |
| Drive Form Factors | 3.5"/2.5" |
| Form Factor | 2U |
| Generation | H13 |
| Interface | NVMe (Optional), SAS (Optional), SATA (Optional) |
| LED | HDD activityLAN1 activityPower statusSystem information |
| Max GPU Count | Up to 2 double-width or 2 single-width GPUs |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| Supported GPU | L40, L40S, NVIDIA PCIe: H100, RTX 6000 Ada Generation, A100View GPU Options, A16, A40, L4, RTX 4000, RTX A2000, RTX A5000, RTX A6000 |
| Air Shroud | 2 Air Shrouds |
| Network Connectivity | Via AIOMView AIOM OptionsView AOC Options |
| BIOS Features | ACPI 6.4Plug and Play (PnP)SMBIOS 3.5 or laterUEFI 2.8USB Keyboard support |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Package | 10.4" (H) x 23.8" (W) x 43.6" (D) |
| Depth | 31.6" (803 mm) |
| Fans | 4x 8cm heavy duty fans with optimal fan speed control |
| Height | 3.5" (88.9 mm) |
| Buttons | Power On/OffUID button |
| M.2 | 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110) |
| GPU-GPU Interconnect | PCIe |
| Width | 17.2" (437 mm) |
| Video | 1 VGA port |
| Core Count | Up to 320C/640T |
| Weight | Gross Weight: 69 lbs (31.3 kg)Net Weight: 39 lbs (17.7 kg) |
| Drive Bays Configuration | Default: Total 12 bays(*NVMe/SAS/SATA support may require additional storage controller and/or cables) |
| USB | 2 USB 3.0 ports(rear) |
| Available Color | Black front & silver body |
| PCI-Express (PCIe) Configuration | DefaultOption A*Option B*Option C*Option D*Option E*Option F*Option G*Option H*Option I*(*Requires additional parts, please refer to the system callout images above.), please see the optional parts list for details. For more details on PCIe slot configuration options |
| CPU | Dual processor(s)AMD EPYC 9004/9005 Series Processors |
| Chipset | System on Chip |
| Memory Voltage | 1.1V |

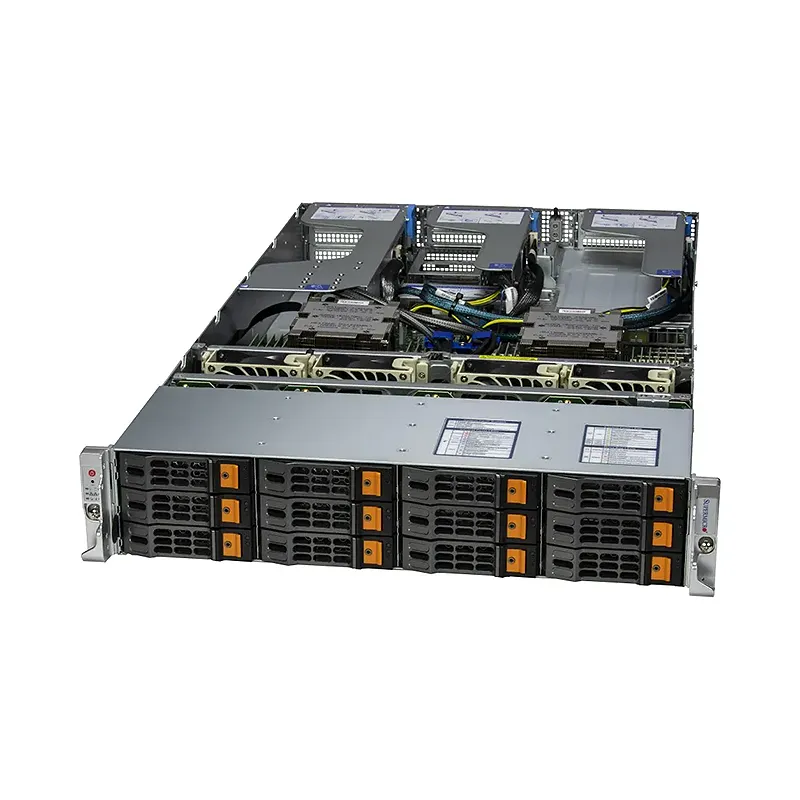

Hyper A+ Server AS -2025HS-TNR (Complete System Only
The Hyper A Server AS-2025HS-TNR is a high-performance, enterprise-grade server designed for data-intensive applications and scalable infrastructure. Key features include dual AMD EPYC 9004 Series processor support, up to 24 DIMM slots for massive memory capacity, and 20 hot-swappable 2.5″ drive bays for flexible storage configurations. It offers advanced I/O with PCIe 5.0 support, redundant power supplies for high availability, and optimized thermal design for efficient cooling. Ideal for cloud, virtualization, and HPC workloads, its robust architecture and expandability make it a powerful solution for modern data centers.
| Brand： | Supermicro |
|---|---|
| Products Status： | New |
| Applications： | AI Inference and Machine Learning, Cloud Computing, Enterprise Server, Software-defined Storage, Virtualization |
| Max GPU： | 2 |
| CPU Type： | AMD EPYC 9004/9005 Series Processors |
