| Brand | Huawei |
|---|---|
| Model | S6730-H48X6C-V2 |
| Products Status | New |
| Flash | 2GB |
| PN | 02354HHT |
| Availability | >0.99999 |
| Memory | 4GB |
| Wide [mm] | 442.0mm |
| Storage temperature | -40C to +70C (-40F to +158F) |
| Service port surge protection | – |
| Power supply surge protection | – AC power module configured: 6 kV" differential mode, 6 kV" common mode, – DC power module configured: 2 kV" differential mode, 4 kV" common mode |
| USB | Supported |
| Power supply mode | Pluggable power supply |
| Heat dissipation mode | Heat dissipation with fan, "telligent fan speed adjustment |
| Input voltage range [V] | – AC"put: 90C290 V AC; 45C65 Hz, – High-voltage DC"put: 190 V DC to 290 V DC, – DC"put: -38.4 V DC to -72 V DC |
| Rated"put voltage [V] | – AC"put: 100 V AC to 240 V AC; 50/60 Hz, – High-voltage DC"put: 240 V DC, – DC"put: C48 V DC to C60 V DC |
| Maximum power consumption [W] | 291W |
| Maximum"put current [A] | The current specifications depend on the pluggable power modules" use. For details, see the related power module specifications. |
| Eth Management port | RJ45 |
| RPS"put | Not supported |
| Number of power slots | 2 |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Airflow direction | Air"take from front, air exhaustion from rear (front-to-rear) |
| Weight without packaging | 5.84 (12.87) |
| Weight with packaging | 9.2 (20.28) |
| Long-term operating altitude | 0-5000 m (0-16404 ft.) |
| Long-term operating temperature | -5C to +45C (23F to 113F) at an altitude of 0-1800 m (0-5906 ft.) |
| Maximum heat dissipation [BTU/h] | 992.92 |
| MTTR [h] | 2 |
| Storage altitude | 0-5000 m (0-16404 ft.) |
| Typical heat dissipation [BTU/h] | 563 |
| Noise at normal temperature (acoustic power) | 65 |
| Noise at normal temperature (acoustic pressure) | 52 |
| Maximum number of GE ports | 48 |
| Maximum number of FE ports | 0 |
| Maximum number of 25GE ports | 0 |
| Maximum number of 10GE ports | 48 |
| Maximum number of physical ports on the entire device | 54 |
| Maximum number of 40GE ports | 6 |

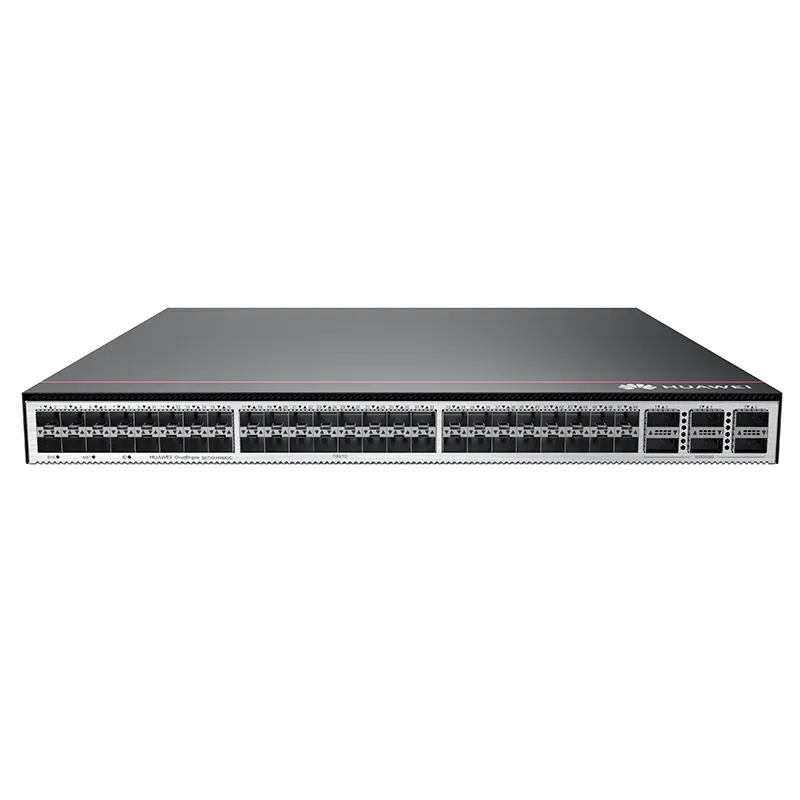

Huawei S6730-H48X6C-V2 (48*10GE SFP+ ports, 6*40GE QSFP28 ports, optional license for upgrade to 6*100GE QSFP28)
The Huawei S6730-H48X6C-V2 is a high-performance aggregation switch designed for enterprise campus and data center networks. It features 48×10GE SFP+ ports and 6×40GE QSFP+ ports, with an optional license to upgrade the 40GE ports to 6×100GE QSFP28, offering future-proof scalability. Key features include robust Layer 2/3 switching, advanced security and traffic management, intelligent O&M with Telemetry and VXLAN support for virtualization. Its compact design, high port density, and flexible uplink options make it ideal for high-throughput, low-latency environments. Unique selling points include full programmability, EVPN support, and Huawei’s intelligent iStack for simplified management and resilient networking.
| Brand： | Huawei |
|---|---|
| Model： | S6730-H48X6C-V2 |
| Products Status： | New |
| Flash： | 2GB |
| PN： | 02354HHT |
