| Brand | Huawei |
|---|---|
| Model | S5731-S24T4X |
| Products Status | New |
| Flash | 1GB |
| PN | 02353AHU |
| Availability | >0.99999 |
| Memory | 2GB |
| Wide [mm] | 442.0mm |
| Height [mm] | 43.6mm |
| Storage temperature | -40C to +70C (-40F to +158F) |
| Service port surge protection | Common mode: 6 kV |
| Console port | RJ45 |
| Redundant power supply | 1+1, Pluggable AC and DC power modules can be used together" the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together. |
| USB | Supported |
| Power supply mode | Pluggable power supply |
| Heat dissipation mode | Heat dissipation with fan, "telligent fan speed adjustment |
| Input voltage range [V] | – AC"put: 90 V AC to 290 V AC; 45 Hz to 65 Hz, – High-voltage DC"put: 190 V DC to 290 V DC, BL15 – DC"put: C38.4 V DC to C72 V DC |
| Rated"put voltage [V] | – AC"put: 100C240 V AC; 50/60 Hz – High-voltage DC"put: 240 V DC – DC"put: C48 V DC to C60 V DC |
| Maximum power consumption [W] | 114W |
| Maximum"put current [A] | The current specifications depend on the pluggable power modules" use. For details, see the related power module specifications. |
| Eth Management port | RJ45 |
| RPS"put | Not supported |
| Number of power slots | 2 |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Airflow direction | Air"take from front, air exhaustion from rear (front-to-rear) |
| Types of fans | Pluggable |
| Typical power consumption [W] | 88 |
| Weight without packaging | 5.28 (11.64) |
| Weight with packaging | 8.4 (18.52) |
| Long-term operating altitude | 0-5000 m (0-16404 ft.) |
| Long-term operating temperature | -5C to +45C (23F to 113F) at an altitude of 0-1800 m (0-5906 ft.) |
| Maximum heat dissipation [BTU/h] | 389 |
| MTTR [h] | 2 |
| Storage altitude | 0-5000 m (0-16404 ft.) |
| Typical heat dissipation [BTU/h] | 300.26 |
| Noise at normal temperature (acoustic power) | 57.5 |
| Noise at normal temperature (acoustic pressure) | 47.5 |

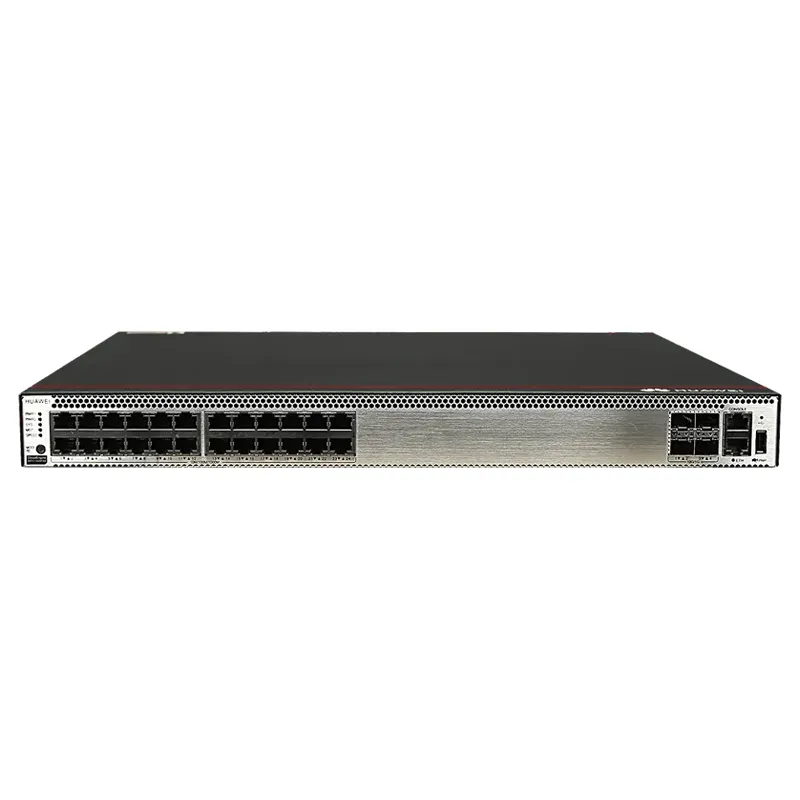

Huawei S5731-S24T4X (24*10/100/1000BASE-T ports,4*10GE SFP+ ports,without power module)
The Huawei S5731-S24T4X is a high-performance Layer 3 switch featuring 24 Gigabit Ethernet ports and 4 10GE SFP uplink ports, designed for enterprise campus networks and data centers. It delivers advanced Layer 3 routing, robust security, and intelligent management capabilities. Key benefits include high-speed connectivity, flexible deployment, and energy-efficient design. Its unique selling points are its support for VXLAN, enhanced QoS, and seamless integration with Huawei’s iMaster NCE for intelligent network management. Ideal for scalable, secure, and future-ready network infrastructures. Power module sold separately.
| Brand： | Huawei |
|---|---|
| Model： | S5731-S24T4X |
| Products Status： | New |
| Flash： | 1GB |
| PN： | 02353AHU |
