Product SKUs

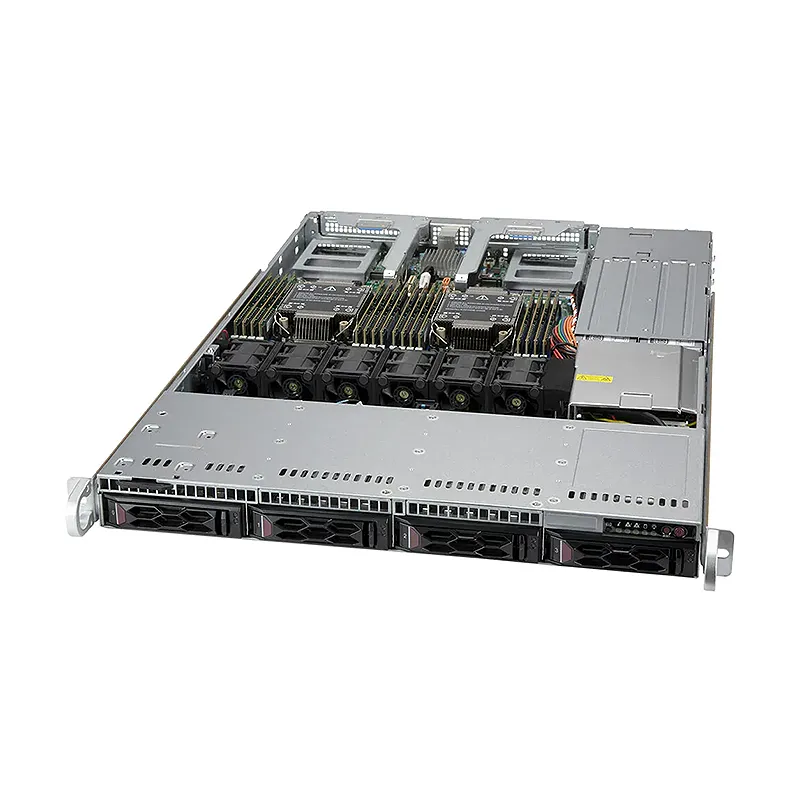

- SuperServerSYS-610C-TRStandard version with PWS-860P-1R2 (Platinum Level)
- SuperServerSYS-610C-TR-EUEuropean version with PWS-861A-1R (Titanium Level)
Motherboard
- Super X12DDW-A6
Processor
- CPU
Dual Socket P4 (LGA-4189)
3rd Gen Intel Xeon Scalable processors - Core Count
Up to 40C/80T; Up to 60MB Cache per CPU
GPU
- Max GPU Count
Up to 2 single-width GPUs
- Supported GPU
NVIDIA PCIe: L4, A2
Intel PCIe: Intel Data Center GPU Flex 140
System Memory
- Memory
Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Supports Intel Optane persistent memory 200 series - Memory Voltage
1.2V
On-Board Devices
- SATA
SATA (6Gbps) ; RAID 0/1/5/10 support
- Chipset
Intel C621A
- Network Connectivity
Via AIOM
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
- USB
2 USB 3.2 Gen1 Type-A ports(rear)
- Video
1 VGA port
- Serial
1 COM port(Rear)
- DOM
1 Super DOM (Disk on Module) port
- TPM
1 TPM header
System BIOS
- BIOS Type
AMI 32MB SPI FLASH ROM
Management
- Power configurations
ACPI/APM Power Management
Chassis
- Form Factor
1U Rackmount
- Model
CSE-LA15TS-R860AWP
Dimensions and Weight
- Height
1.7″ (43 mm)
- Width
17.2″ (437 mm)
- Depth
25.6″ (650 mm)
- Package
7.8″ (H) x 23.8″ (W) x 34.6″ (D)
- Weight
Gross Weight: 46 lbs (20.9 kg)
Net Weight: 25 lbs (11.3 kg) - Available Color
Black front & sliver body
Front Panel
- LED
Drive activity
Network activity
Power status
Universal Information - Buttons
Power On/Off
Reset button
Unit Identifier (UID)
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 2 PCIe 4.0 x16 FHHL slots 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 4 bays 4 front hot-swap 3.5″ SAS/SATA drive bays
Option A: Total 4 bays 4 front hot-swap 2.5″ SAS/SATA drive bays - M.2
2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280(default); VROC required for RAID)
- Peripheral Bays
2 2.5″ peripheral bays (optional)
System Cooling
- Fans
6x 4cm heavy duty fans with optimal fan speed control
- Air Shroud
2 Air Shrouds
Power Supply
- 2x 860W
2x 860W Redundant (1 + 1) Platinum Level (94%) Hot-plug power supplies
Dimension (WxHxL)
54.5 x 40.25 x 322 mm
Input
800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
860W: 200-240Vac
860W: 200-240Vdc / 50-60Hz
860W: 200-240Vac / 50-60Hz
+12V
Max: 66.6A / Min: 0A (100Vac-127Vac)
Max: 71.6A / Min: 0A (200Vdc-240Vdc)
Max: 71.6A / Min: 0A (200Vac-240Vac)
5V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
