| Forwarding rate | Up to 1 Bpps |
|---|---|
| FNF entries | Up to 98,000 |
| Operating temperature | 32 to 104F (0 to 40C) |
| Switching capacity | Up to 2.0 Tbps |
| Storage temperature | -4 to 149F (-20 to 65C) |
| Input voltage | 90 to 264 VAC |
| Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) | Up to 212,000 indirect + direct, Up to 90,000 host/ARP |
| Flash | 16 GB |
| VLAN IDs | 4000 |
| Model | C9500-24Y4C-E |
| Total number of IPv6 routes | Up to 212,000 indirect + direct, Up to 90,000 host |
| Dimensions (H x W x D) | 1.73 x 17.5 x 18.0 in |
| Total number of MAC addresses | Up to 82,000 |
| Jumbo frame | 9216 bytes |
| Brand | Cisco |
| QoS ACL scale | Up to 16000 |
| Security ACL scale | Up to 27000 |
| Total Switched Virtual Interfaces (SVIs) | 4000 |
| DRAM | 16 GB |
| Rack units (RU) | 1 RU |

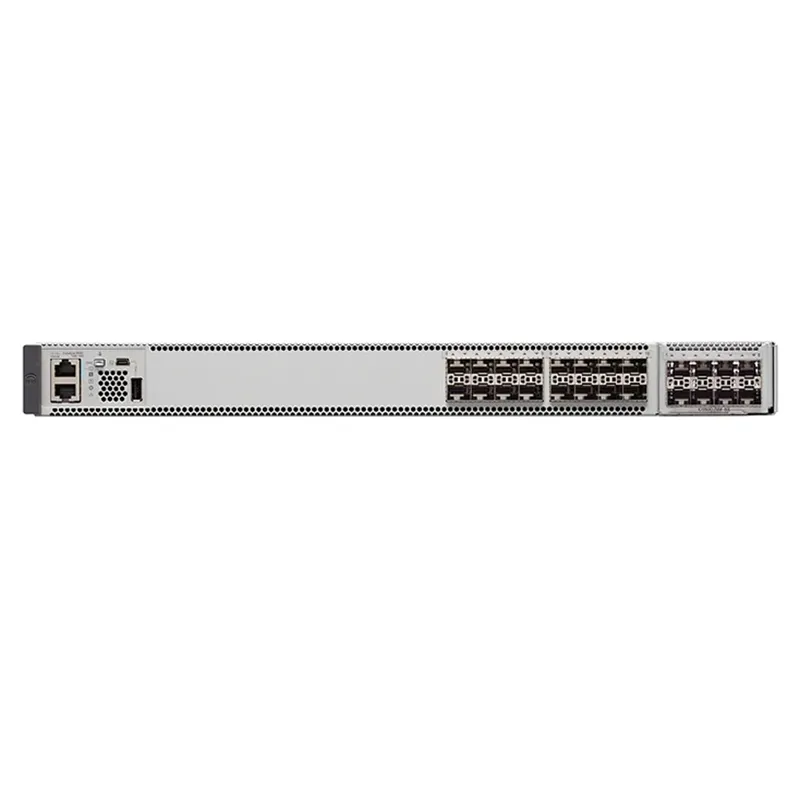

C9500-24Y4C-E Catalyst 9500 Series 24-Port 3 Layer Switch
The C9500-24Y4C-E is a high-performance Catalyst 9500 Series 24-port Layer 3 switch designed for enterprise core and aggregation networks. It features 24 x 25G SFP28 ports and 4 x 100G QSFP28 uplinks, delivering exceptional speed and scalability. Powered by Cisco’s advanced IOS XE software, it supports full Layer 3 routing, advanced security, and automation capabilities. Key benefits include high-density 25G connectivity, robust performance for high-throughput environments, and support for SD-Access and network programmability. Its modular design, redundancy features, and energy efficiency make it a future-ready solution for modern enterprise networks.
| Forwarding rate： | Up to 1 Bpps |
|---|---|
| FNF entries： | Up to 98,000 |
| Operating temperature： | 32 to 104F (0 to 40C) |
| Switching capacity： | Up to 2.0 Tbps |
| Storage temperature： | -4 to 149F (-20 to 65C) |
