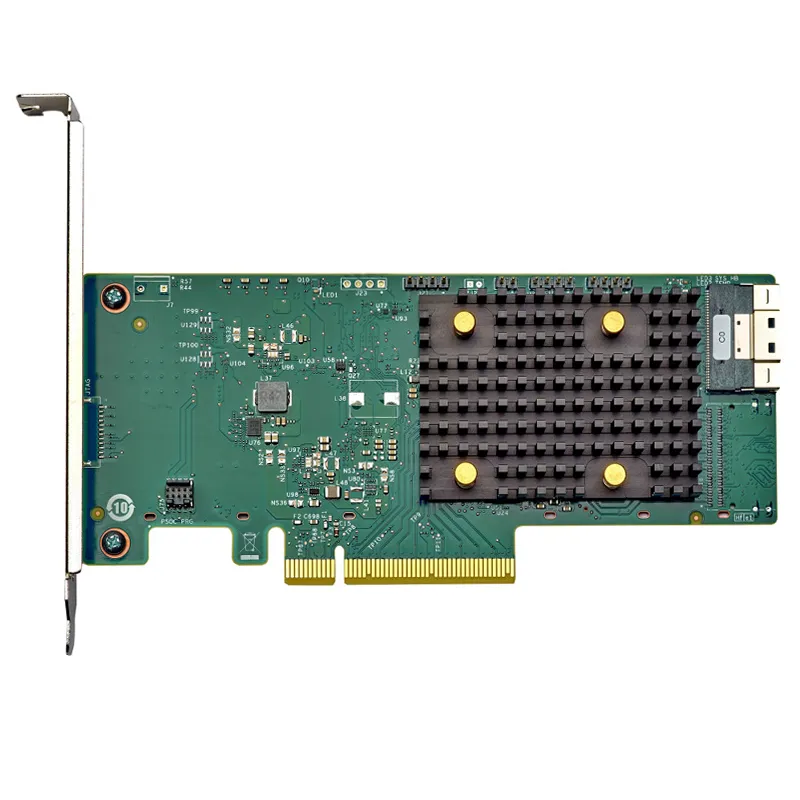

- Broadcom MegaRAID 9540-8i – storage controller (RAID) – SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) – PCIe 4.0 x8
- Device TypeStorage controller (RAID) – plug-in card – low profile
- Bus TypePCIe 4.0 x8
- InterfaceSATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe)
- Supported DevicesDisk array (RAID)
- Channel Qty8
- Max Storage Devices Qty240
- RAID LevelRAID 0,RAID 1,RAID 10,JBOD
- System RequirementsFreeBSD,Red Hat Linux,SuSe Linux,Microsoft Windows,Debian Linux,Oracle Enterprise Linux,CentOS,Ubuntu,VMware ESXi,Citrix XenServer,Linux Fedora,VMware vSphere (ESXi)
- Dimensions (WxDxH)15.565 cm x 6.89 cm
- Manufacturer Warranty3-year warranty
Broadcom MegaRAID 9540-8i storage controller RAID SATA 6Gb/s / SAS 12Gb/s / PCIe
The Broadcom MegaRAID 9540-8i is a high-performance storage controller designed for enterprise-grade data centers and demanding workloads. It supports up to 8 internal SATA 6Gb/s and SAS 12Gb/s drives, delivering fast, reliable data access. Built on a PCIe Gen4 interface, it offers double the bandwidth of previous generations, ensuring optimal throughput and low latency. Key features include Tri-Mode support for SATA, SAS, and NVMe drives, advanced RAID levels (0, 1, 5, 6, 10, 50, 60), and robust data protection with CacheVault technology. Its scalability, flexibility, and high-speed performance make it ideal for modern storage infrastructures.
| Brand： | Broadcom |
|---|---|
| Products Status： | New |
| Application： | Server |
| Model： | 9540-8i |
| Host Interface： | PCI Express 4.0 x8 |
$Quote
| Brand | Broadcom |
|---|---|
| Products Status | New |
| Application | Server |
| Model | 9540-8i |
| Host Interface | PCI Express 4.0 x8 |
| Transfer rate | Up to 12Gb/s |
| Interface Type | SATA / SAS |
