| Memory Types | DDR5 |
|---|---|
| Code Name | Raphael AM5 |
| Max. Boost Clock | Up to 5.7 GHz |
| TDP | 170 W |
| Graphics Core Count | 2 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Total Threads | 32 |
| Unlocked for Overclocking | Yes |
| Max. Operating Temperature (Tjmax) | 95C |
| Base Clock | 4.5 GHz |
| Architecture | Zen 4 |
| Max. Memory | 128 GB |
| Manufacturing Tech | 5 nm |
| Product Family | AMD Ryzen |
| AMD PRO Technologies | No |
| NVMe Support | Boot, RAID0, RAID1, RAID10 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Brand | AMD |
| *OS Support | RHEL x86 64-Bit, Ubuntu x86 64-Bit, Windows 10 – 64-Bit Edition, Windows 11 – 64-Bit Edition |
| CPU Compute Die (CCD) Size | 71mm2 |
| Regional Availability | Global |
| Memory Type | DDR5 |
| Multithreading (SMT) | Yes |
| Native USB 2.0 (480Mbps) Ports | 1 |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Processor Base Frequency | 4.50 GHz |
| Max Memory by Socket | "memoryType":["DDR5-3600"]}, "memoryType":["DDR5-3600"]}], "memoryType":["DDR5-5200"]}, [{"memoryKey2":"2x1R", {"memoryKey2":"2x2R", {"memoryKey2":"4x1R", {"memoryKey2":"4x2R" |
| Series | AMD Ryzen 9 7000 Series |
| Memory Channels | 2 |
| ECC Support | Yes (Requires mobo support) |
| Graphics Model | AMD Radeon Graphics |
| Native PCIe Lanes (Total/Usable) | 24, 28 |
| Precision Boost Overdrive | Yes |
| CPU Socket Type | AM5 |
| Application | Desktop |
| Product ID Tray | 100-000000514 |
| Cache | 64 MB |
| Part Number | AMD Ryzen 9 7950X |
| Graphics Frequency | 2200 MHz |
| L2 Cache | 16 MB |
| Total Cores | 16 |
| Consumer Use | Yes |
| Max Memory Size | 128 GB |
| Products Status | New |
| Curve Optimizer Voltage Offsets | Yes |
| AMD EXPO Memory Overclocking Technology | Yes |
| PCI Express® Version | PCIe 5.0 |

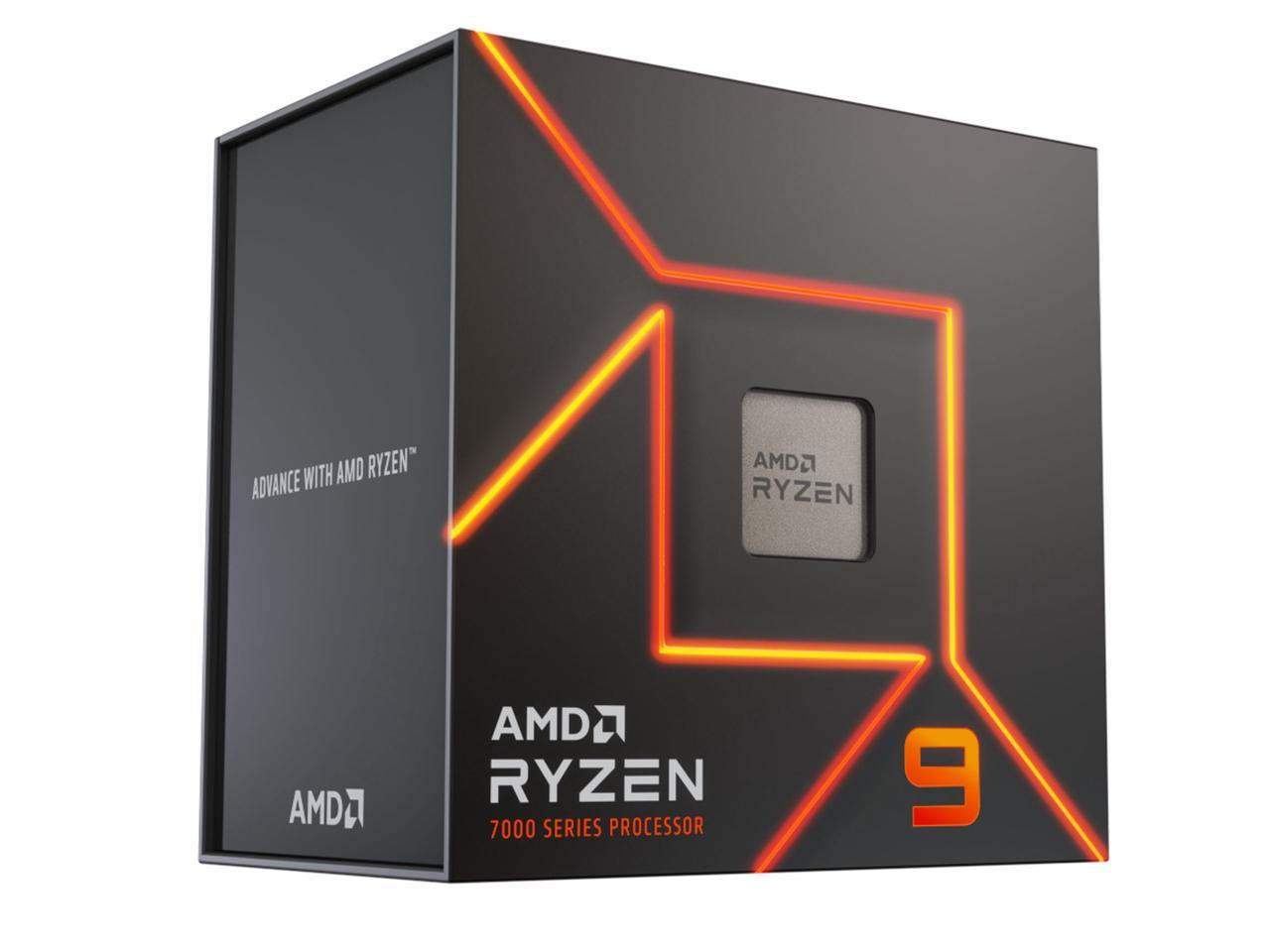

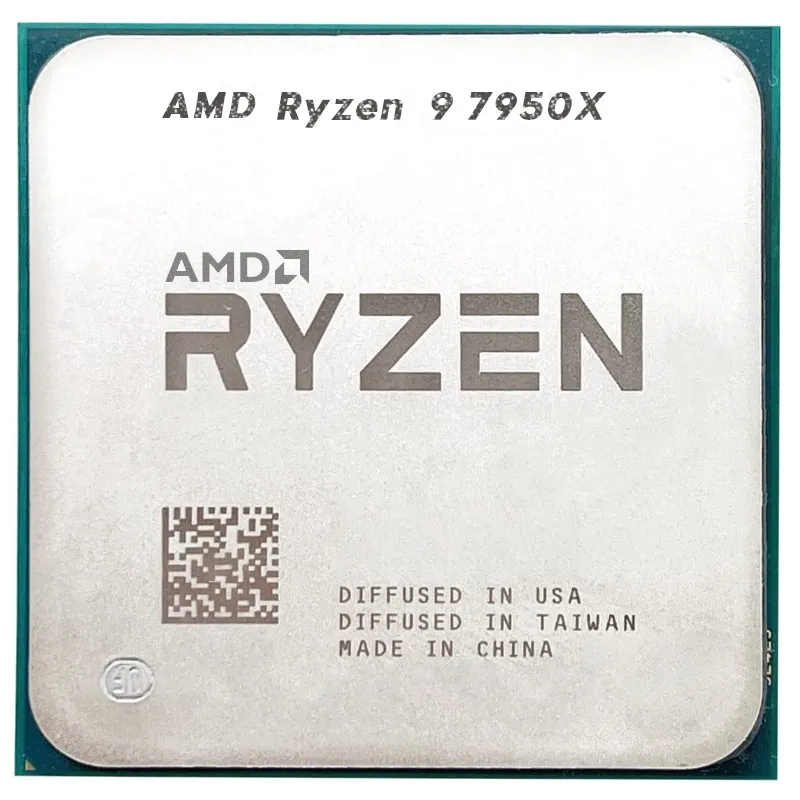

AMD 9 7950X CPU Socket AM5 Desktop processor
The AMD Ryzen 9 7950X is a high-performance desktop processor designed for the AM5 socket, featuring 16 cores and 32 threads built on advanced 5nm Zen 4 architecture. It delivers exceptional speed with a base clock of 4.5 GHz and boost up to 5.7 GHz, making it ideal for gaming, content creation, and multitasking. Key benefits include support for DDR5 memory, PCIe 5.0 for next-gen connectivity, and enhanced power efficiency. Its unique selling points are industry-leading performance, cutting-edge architecture, and future-ready platform compatibility.
| L3 Cache： | 64 MB |
|---|---|
| Memory Types： | DDR5 |
| Code Name： | Raphael AM5 |
| Max. Boost Clock： | Up to 5.7 GHz |
| TDP： | 170 W |
